# Load data management and analysis tools
library(tidyverse)
library(tidycensus)
library(readxl)
library(janitor)
library(lubridate)
# Load spatial analysis tools
library(tidygeocoder)
library(sf)
library(tigris)
library(mapview)
# Load data visualization tools
library(hdatools)
library(scales)
library(ggtext)
library(ggridges)
library(kableExtra)
library(reactable)
library(patchwork)
library(formattable)
# Set defaults
setwd("~/repos/piedmont")
today <- Sys.Date()Piedmont Housing Alliance (PHA) is a 501(c)3 nonprofit organization that provides housing services to clients in the Charlottesville, Virginia region. In 2022, PHA received a Tier III Capacity Building Program Enhancement Grant from Virginia Housing to evaluate and improve their programs aimed at helping first-time homebuyers.
PHA offers two programs to help buyers earning less than 80% of Area Median Income (AMI) purchase their first home.
The Down Payment Loan (DPL) program combines funding from several different sources to provide buyers with additional assistance to increase their total down payment and cover closing costs. This allows buyer to more easily afford homes at prices they would otherwise be unable to afford.
PHA administers the Sponsoring Partnerships & Revitalizing Communities (SPARC) program, which lowers a buyer’s mortgage interest rate by 1.00%. SPARC funds are allocated by Virginia Housing and help buyers save thousands of dollars over the life of their loan.
PHA seeks a deeper understanding of these two programs’ outcomes and impacts, particularly in terms of racial equity and wealth-building. This document was prepared by HDAdvisors to develop methods for evaluating the program using internal and external data.
The primary goal of this analysis is a preliminary evaluation of the DPL and SPARC programs’ current abilities to support buyers who are more likely to be at a systemic disadvantage because of unjust lending practices and other discriminatory efforts.
The secondary goal is to provide PHA staff with reproducible methods for collecting, preparing, and analyzing the data necessary for this evaluation. This will allow PHA to regularly track and monitor these programs without outside assistance.
This analysis will be helpful for PHA in three important ways:
The following questions help determine (1) what kind of data is needed, and (2) how that data should be analyzed.
This section outlines each metric necessary for analysis, along with methods for collecting and cleaning the appropriate data.
PHA provided data on DPL and SPARC clients from FY 2018 through FY 2023.
This data includes attributes about each client household, including:
It also includes DPL-specific program data, including:
Information on the homes purchased by clients include:
Information about clients’ mortgages are also provided:
The full dataset includes multiple other fields that are not necessary or relevant to this analysis.
Step 1: Import data
# Import list of DPL clients and clean column names
clients_dpl_raw <- read_xlsx("data/raw/clients.xlsx",
sheet = "Down Payment Loan") |>
clean_names()
# Import list of SPARC clients and clean column names
clients_sparc_raw <- read_xlsx("data/raw/clients.xlsx",
sheet = "SPARC") |>
clean_names()Step 2: Clean up and fix data
# Clean up DPL data
clients_dpl <- clients_dpl_raw |>
# Drop rows that do not have client records
drop_na(contract_date) |>
# Remove columns with personal information or unnecessary data
select(!c(fha_case_number, ami_approval_date, client_intake_date,
client_last_name, client_first_name, counselor,
service_type, client_employer, employer_msa,
property_msa, status, loan_officer, client_msa,
client_email_address, phone_number
)) |>
# Rename certain columns to more helpful descriptions
rename(mortgage_product = x1st_mortgage_product,
mortgage_amount = x1st_mortgage_amount,
pha_loans_n = number_of_pha_loans,
pha_loans_amount = of_pha_loans,
pha_loan_source = source_of_pha_loan
) |>
# Create new unique DPL client ID column
mutate(id_dpl = str_c("DPL", str_pad(row_number(), 3, pad = "0")),
.before = 1) |>
# Clean up original client_number column
mutate(client_number = str_remove_all(client_number, "\\.0")) |>
# Change "Unknown" values to NA in appraised_value
mutate(appraised_value = as.numeric(na_if(appraised_value, "Unknown"))) |>
# Clean up lending_institution names
mutate(lending_institution = case_when(
str_detect(lending_institution, "Coast") ~ "Atlantic Coast Mortgage",
str_detect(lending_institution, "Fulton") ~ "Fulton Mortgage",
str_detect(lending_institution, "Charlottesville") ~ "Habitat for Humanity of Greater Charlottesville",
str_detect(lending_institution, regex("first", ignore_case = T)) ~ "Towne First Mortgage",
str_detect(lending_institution, "USDA") ~ "USDA",
str_detect(lending_institution, "Waterstone") ~ "Waterstone Mortgage Corporation",
lending_institution == "Towne Bank Mortgage" ~ "TowneBank Mortgage",
TRUE ~ lending_institution
)) |>
# Clean up mortgage_product names
mutate(mortgage_product = case_when(
str_detect(mortgage_product, "502|USDA|RHS") ~ "502 Direct Loan",
mortgage_product == "Coventional" ~ "Conventional",
str_detect(mortgage_product, "VHDA FHA|VHDA - HFA") ~ "VHDA - FHA",
TRUE ~ mortgage_product
)) |>
# Change '$-' values in other_assistance_amount to NA
mutate(other_assistance_amount = as.numeric(na_if(other_assistance_amount, "$-"))) |>
# Create column for single or multiple race; clean up race names
mutate(multirace = case_when(
str_detect(race, "Multi") ~ "Multiple",
TRUE ~ "Single"),
.before = race) |>
mutate(race = case_when(
str_detect(race, "and White") ~ "Black and White",
str_detect(race, "Other") ~ "Other races",
str_detect(race, "Asian") ~ "Asian",
str_detect(race, "Single Race - Black") ~ "Black",
TRUE ~ "White"
)) |>
# Simplify rural_area_status and english_proficiency columns
mutate(rural_area_status = case_when(
str_detect(rural_area_status, "lives") ~ "Rural",
TRUE ~ "Not rural"
)) |>
mutate(english_proficiency = case_when(
str_detect(english_proficiency, "is not") ~ "Not proficient",
TRUE ~ "Proficient"
))# Clean up SPARC data
clients_sparc <- clients_sparc_raw |>
# Remove columns with personal information or unnecessary data
select(!c(last_name, first_name, client,
lenders_name, x20)) |>
# Rename certain columns to match DPL data
rename(sale_price = sales_price,
mortgage_amount = base_loan_amount,
household_annual_income = borrower_s_income,
household_size = number_in_hh,
locality = msa,
mortgage_product = loan_product,
lending_institution = lending_company
) |>
# Change client_number column to string
mutate(client_number = as.character(client_number)) |>
# Create new unique SPARC client ID column
mutate(id_sparc = str_c("SPC", str_pad(row_number(), 3, pad = "0")),
.before = 1) |>
# Fix interest_rate values
mutate(interest_rate = case_when(
interest_rate > 1 ~ interest_rate/100,
TRUE ~ interest_rate
)) |>
# Create mortgage_notes column for specific loan info
mutate(mortgage_notes = case_when(
str_detect(mortgage_product, "No MI") ~ "No mortgage insurance",
str_detect(mortgage_product, "Reduced") ~ "Reduced mortgage insurance",
str_detect(mortgage_product, "Second Plus") ~ "Second Plus",
TRUE ~ NA_character_),
.after = mortgage_product
) |>
# Clean up mortgage_product names to match DPL data
mutate(mortgage_product = case_when(
str_detect(mortgage_product, regex("Conventional", ignore_case = T)) ~ "Conventional",
str_detect(mortgage_product, regex("RHS", ignore_case = T)) ~ "502 Direct Loan",
str_detect(mortgage_product, regex("FHA", ignore_case = T)) ~ "FHA",
is.na(mortgage_product) ~ "Unknown",
TRUE ~ mortgage_product
)) |>
# Clean up lending_institution names to match DPL data
mutate(lending_institution = case_when(
str_detect(lending_institution, "C&F") ~ "C&F Mortgage Corporation",
str_detect(lending_institution, "Waterstone") ~ "Waterstone Mortgage Corporation",
is.na(lending_institution) ~ "Unknown",
TRUE ~ lending_institution
)) |>
# Clean up yes/no columns
mutate(received_cd = case_when(
str_detect(received_cd, "YES|Yes|yes") ~ "Yes",
received_cd == "no" ~ "No",
received_cd == "N/A" ~ NA_character_,
TRUE ~ NA_character_
)) |>
mutate(in_ors = case_when(
str_detect(in_ors, "No -") ~ "No",
TRUE ~ in_ors
))Step 3: Join DPL and SPARC client data
Some clients use both the DPL and SPARC programs to purchase their home. For now, these clients were identified by manually cross-referencing names and other fields. To join the data, the DPL client_number values were assigned to the respective client records in the SPARC data.
In the future, PHA should maintain a single client dataset that can differentiate between DPL-only, SPARC-only, and “double-dipping” clients. Specific recommendations will be detailed at the end of this document.
# Create full join using client_number
clients_all <- clients_dpl |>
full_join(clients_sparc, by = "client_number", na_matches = "never",
suffix = c("_dpl", "_spc")) |>
# Reorder columns to place duplicate fields together
select(2, 1, 46, 3, 4, 47, 5, 52, 6, 7, 53, 8, 9,
10, 11, 12, 13, 14, 50, 15, 16, 17, 59, 18,
55, 19, 51, 20, 49, 48, 50, 21, 22, 23, 24,
25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35,
36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 54,
56, 57, 60, 61
) |>
# Create column to show whether client uses one or both programs
mutate(program = case_when(
!is.na(id_dpl) & !is.na(id_sparc) ~ "Both",
!is.na(id_dpl) & is.na(id_sparc) ~ "DPL",
TRUE ~ "SPARC"),
.before = 1) |>
# Create universal client ID column
mutate(id_pha = str_c("PHA", str_pad(row_number(), 3, pad = "0")),
.before = 1)Step 4: View data
Cleaned and joined client data are shown in the table below.
reactable(clients_all,
defaultPageSize = 5,
defaultColDef = colDef(minWidth = 150),
compact = TRUE,
striped = TRUE,
wrap = FALSE)Where there were duplicate fields from each dataset, the _dpl and _spc suffixes were added to the end of column names, respective to their source. For example, the close date data from the DPL records are retained as the close_date_dpl column, while the close dates from the SPARC data are close_date_spc.
Both the DPL and SPARC datasets were found to have data integrity issues that PHA should resolve in the future.
Mortgage product fields included both “RHS” (Rural Housing Service), “USDA”, and “502” values. For now, these are all assumed to be “502 Direct Loans”.
Overlapping fields from the DPL and SPARC datasets do not always reconcile for the clients who used both programs. For example, the specific close dates and household income values are often slightly different—but should, in theory, be identical.
The SPARC client records are missing many values in the closing date, interest rate, household income, household size, and lender columns.
Some DPL clients were noted as receiving SPARC in the other_assistance column. However, two of clients were not found in the SPARC data.
Demographic and socioeconomic data will help establish the baseline characteristics of population groups that PHA seeks to compare with its clients. For example, how closely does the client pool match the average racial and ethnic makeup across the region?
Two datasets will be used to create summary profiles of the geographies PHA will use as reference for its clients’ characteristics. Both are from the U.S. Census Bureau:
As of June 2023, the latest ACS data available are the 2017-2021 5-year estimates.
The fields to collect from this data include:

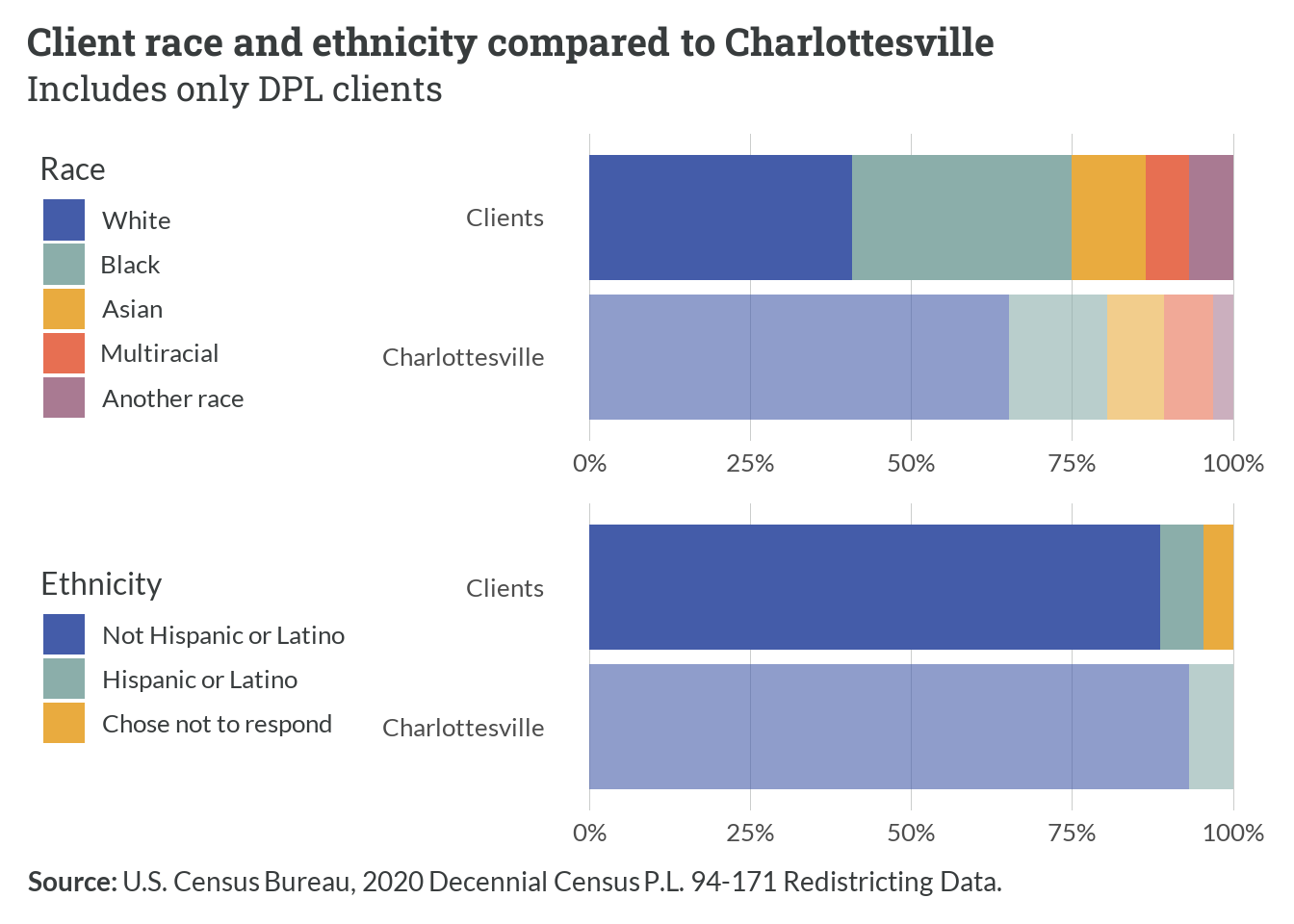

Step 1: Race and ethnicity data from 2020 Census
# Get variables for 2020 Census PL-94171 Redistricting dataset
pl_vars <- load_variables(2020, "pl", cache = TRUE)
# Find and select race and ethnicity variables
race_vars <- pl_vars |>
filter(name %in% c(
"P1_003N", # White
"P1_004N", # Black
"P1_005N", # American Indian and Alaska Native
"P1_006N", # Asian
"P1_007N", # Native Hawaiian and Other Pacific Islander
"P1_008N", # Some other race
"P1_009N", # Two or more races
"P2_002N", # Total Hispanic or Latino
"P2_003N" # Total not Hispanic or Latino
)) |>
# Rename race and ethnicity groups
mutate(label = case_when(
name == "P1_003N" ~ "White",
name == "P1_004N" ~ "Black",
name == "P1_005N" ~ "Another race",
name == "P1_006N" ~ "Asian",
name == "P1_007N" ~ "Another race",
name == "P1_008N" ~ "Another race",
name == "P1_009N" ~ "Multiracial",
name == "P2_002N" ~ "Hispanic or Latino",
name == "P2_003N" ~ "Not Hispanic or Latino",
)) |>
# Add race/ethnicity label
mutate(category = case_when(
str_detect(name, "P1") ~ "Race",
TRUE ~ "Ethnicity"),
.after = 1
) |>
# Drop concept column (unneeded)
select(-concept)
# Import 2020 Census race and ethnicity data for Charlottesville City
cv_race_raw <- get_decennial(
geography = "county",
variables = race_vars$name,
year = 2020,
sumfile = "pl",
state = "VA",
county = "Charlottesville city",
cache_table = TRUE
)# Join race and ethnicity labels
cv_race <- cv_race_raw |>
left_join(race_vars, by = c("variable" = "name")) |>
# Sum "Another race" values into one row
group_by(category, label) |>
summarise(value = sum(value)) |>
# Add percent column
group_by(category) |>
mutate(pct = value/sum(value)) |>
ungroup()
# Generate table
cv_race |>
arrange(desc(value), .by_group = TRUE) |>
kable() |>
kableExtra::kable_styling(
bootstrap_options = c("striped", "hover", "condensed", "responsive")
)| category | label | value | pct |
|---|---|---|---|
| Ethnicity | Not Hispanic or Latino | 43346 | 0.9311108 |
| Race | White | 30344 | 0.6518162 |
| Race | Black | 7122 | 0.1529869 |
| Race | Asian | 4083 | 0.0877065 |
| Race | Multiracial | 3583 | 0.0769660 |
| Ethnicity | Hispanic or Latino | 3207 | 0.0688892 |
| Race | Another race | 1421 | 0.0305243 |

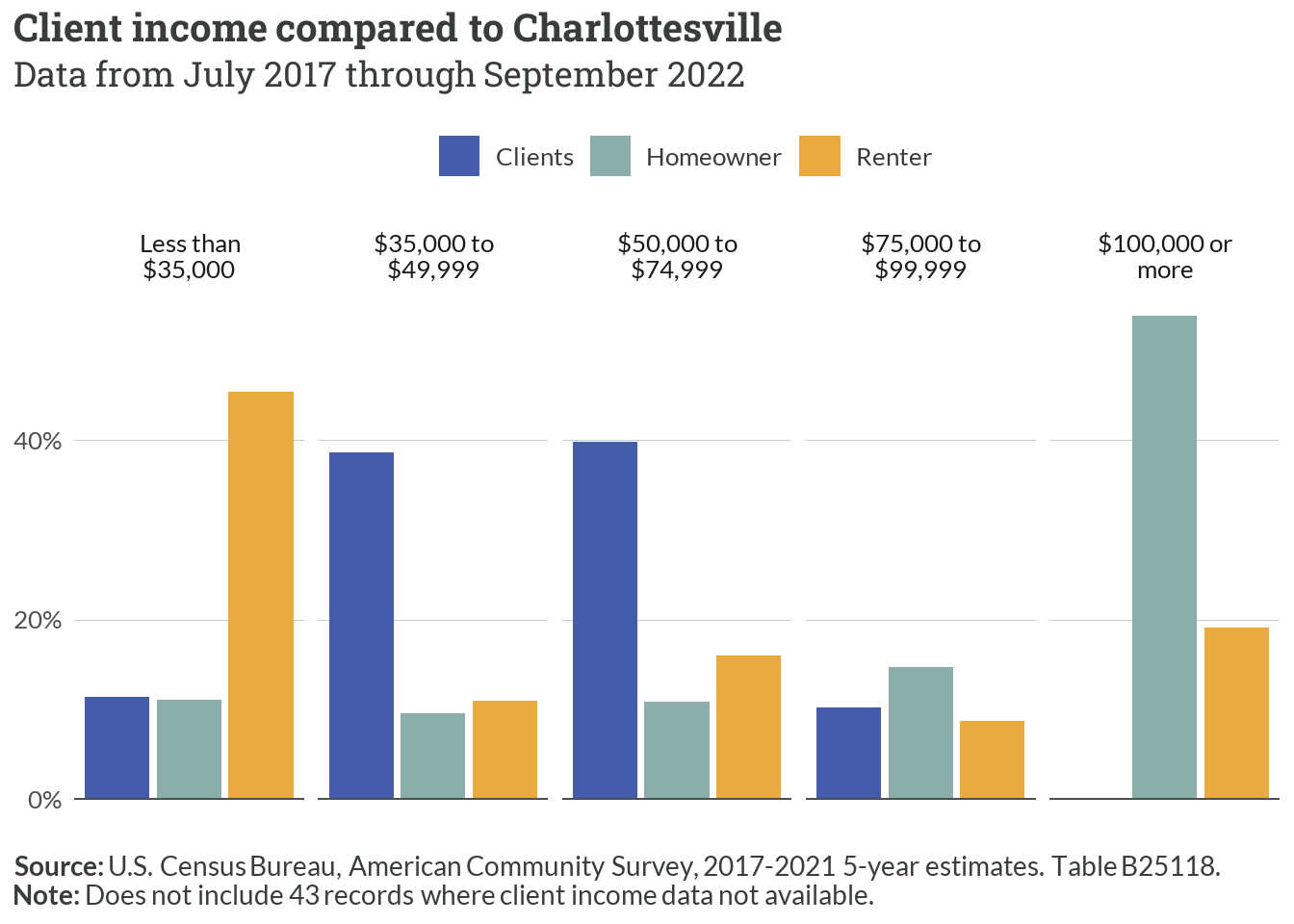

Step 2: Household income data from ACS
# Get variables for Table B25118: Tenure by Household Income
b25118_vars <- load_variables(2021, "acs5", cache = TRUE) |>
filter(str_sub(name, end = 6) %in% "B25118")
# Clean variables
inc_vars <- b25118_vars |>
separate(label, c("est", "total", "tenure", "income"), sep = "!!") |>
select(1, 4, 5) |>
drop_na() |>
mutate(tenure = str_remove_all(tenure, " occupied:"),
tenure = str_replace_all(tenure, "Owner", "Homeowner"))
# Import 2021 ACS estimates
b25118_raw <- get_acs(
geography = "county",
variables = inc_vars$name,
year = 2021,
county = "Charlottesville city",
state = "VA",
cache_table = TRUE
)# Join variables to data
cv_income <- b25118_raw |>
left_join(inc_vars, by = c("variable" = "name")) |>
# Remove unnecessary columns and rearrange
select(6, 7, 4) |>
# Collapse into fewer income categories
mutate(income = case_when(
income == "Less than $5,000" ~ "Less than $35,000",
income == "$5,000 to $9,999" ~ "Less than $35,000",
income == "$10,000 to $14,999" ~ "Less than $35,000",
income == "$15,000 to $19,999" ~ "Less than $35,000",
income == "$20,000 to $24,999" ~ "Less than $35,000",
income == "$25,000 to $34,999" ~ "Less than $35,000",
income == "$100,000 to $149,999" ~ "$100,000 or more",
income == "$150,000 or more" ~ "$100,000 or more",
TRUE ~ income
)) |>
group_by(tenure, income) |>
summarise(estimate = sum(estimate))
# Generate table
cv_income |>
ungroup() |>
mutate(income = fct_relevel(income, "Less than $35,000", "$35,000 to $49,999",
"$50,000 to $74,999", "$75,000 to $99,999",
"$100,000 or more")) |>
arrange(income) |>
kable() |>
kableExtra::kable_styling(
bootstrap_options = c("striped", "hover", "condensed", "responsive")
)| tenure | income | estimate |
|---|---|---|
| Homeowner | Less than $35,000 | 883 |
| Renter | Less than $35,000 | 5140 |
| Homeowner | $35,000 to $49,999 | 764 |
| Renter | $35,000 to $49,999 | 1234 |
| Homeowner | $50,000 to $74,999 | 861 |
| Renter | $50,000 to $74,999 | 1809 |
| Homeowner | $75,000 to $99,999 | 1171 |
| Renter | $75,000 to $99,999 | 985 |
| Homeowner | $100,000 or more | 4300 |
| Renter | $100,000 or more | 2165 |
Step 3: Homeownership data from ACS
# tbd# tbdAlong with comparing client characteristics with the region or a neighborhood as a whole, we can compare their mortgages to overall lending activity in the community over time. This will allow PHA to benchmark its buyer assistance efforts to home loan trends across the region.
This information is available from the Home Mortgage Disclosure Act (HMDA) data from the Consumer Financial Protection Bureau. HMDA data include loan-level information on buyer demographics, loan attributes, and property characteristics. Entries for buyers whose applications were eventually withdrawn or denied are also included.
As of June 2023, the latest HMDA data available is for 2021.
The fields to collect from this data include:
This data was not collected within the scope of the original project. Analysis with this data could be completed as a future update.
Detailed data on home sales and values are necessary to make estimates about the total home equity gained (or lost) by PHA buyers and other homeowners in the community. This property-level data will help PHA assess its programs’ abilities to support wealth-building among clients.
Localities in PHA’s service area regularly assess property values to calculate the total real estate taxes to be paid by each property owner. Properties are reassessed to better match taxable values with potential market values, which can change significantly over time.
Despite these updates, local assessments can often lag behind current market trends, so they are not the most accurate indicator of the actual market value of a home if it were sold. Still, assessment data are consistent and publicly available for all parcels in a locality. This creates a useful longitudinal dataset.
For this preliminary analysis, only assessment data from the City of Charlottesville will be used.
The fields to collect from this data include:
# Load in multi-year assessment data
cv_assess <- read_csv("data/raw/Real_Estate_(All_Assessments).csv") |>
# Filter tax years 2017 and later
filter(TaxYear > 2016) |>
# Keep only relevant fields
select(ParcelNumber, TotalValue, TaxYear)# Load in detailed residential property data
cv_residential <- read_csv("data/raw/Real_Estate_(Residential_Details).csv") |>
# Filter for single-family types only
filter(str_detect(UseCode, "Single Family")) |>
# Keep only relevant fields
select(ParcelNumber, StreetNumber, StreetName, Bedrooms, HalfBathrooms,
FullBathrooms, SqFt = SquareFootageFinishedLiving)
# Load shapefile of parcels
cv_parcels <- st_read("data/shp/Parcel_Area_Details.shp") |>
# Project into Virginia State Plane South
st_transform(4502) |>
# Fix column name
select(ParcelNumber = ParcelNumb) |>
# Join to detailed residential property data
right_join(cv_residential, by = "ParcelNumber")
# Save data
write_rds(cv_parcels, "data/cv_parcels.rds")Actual recorded home sales are the most accurate way to determine residential property values. For arms-length transactions, sales prices reflect the actual market value of each home. These records are therefore the ideal source to best determine home equity changes among homeowners.
PHA is able to provide data exported from the multiple listing service (MLS) operated by the Charlottesville Area Association of REALTORS® (CAAR). The MLS platform includes all real estate listings from agents in the region and is dynamically updated as listings are added, updated, or closed.
For this preliminary analysis, PHA has provided data on all sold single-family homes in the City of Charlottesville from September 2022 through November 22, 2022.
Fields included in this exports include:
# Load in records exported from MLS and clean column names
mls <- read_csv("data/raw/Default_MLS_Defined_Spreadsheet.csv") |>
clean_names() |>
# Keep only relevant fields
select(address, city, closed_date, number_beds, number_baths, total_sq_ft, list_price)
# Add state field and geocode addresses
mls_geocode <- mls |>
mutate(state = "VA", .before = 3) |>
geocode(street = address,
state = state,
city = city,
method = "geocodio",
lat = lat,
long = long) |>
# Drop records that did not match
drop_na(lat) |>
# Specify WGS 1984 coordinate system for lat/long data
st_as_sf(coords = c("long", "lat"),
remove = FALSE,
crs = 4326) |>
# Project into Virginia State Plane South
st_transform(4502)
# Save data
write_rds(mls_geocode, "data/mls_geocode.rds")The City of Charlottesville also maintains a public record of real estate transactions on their open data portal. This data is accessed and used in the Section 3.6 section.
From July 2017 through September 2022, PHA served a total of 131 households with its DPL and SPARC programs.
# Cumulative total served by program
clients_total <- clients_all |>
select(program, close_date_dpl, close_date_spc) |>
# Collapse close dates into one column
# Assume DPL close date is correct when SPARC date differs
mutate(close_date = case_when(
!is.na(close_date_dpl) ~ close_date_dpl,
TRUE ~ close_date_spc
))
# Summarise clients by month
clients_cum <- clients_total |>
drop_na(close_date) |>
count(program, month = floor_date(close_date, "month")) |>
ungroup() |>
complete(program, month, fill = list(n = 0)) |>
# Cumulative sum by program
group_by(program) |>
mutate(cum_sum = cumsum(n))
# Create plot
ggplot(clients_cum, aes(x = month, y = cum_sum, fill = program)) +
geom_area() +
scale_y_continuous(breaks = c(25,50,75,100,125)) +
scale_fill_hda() +

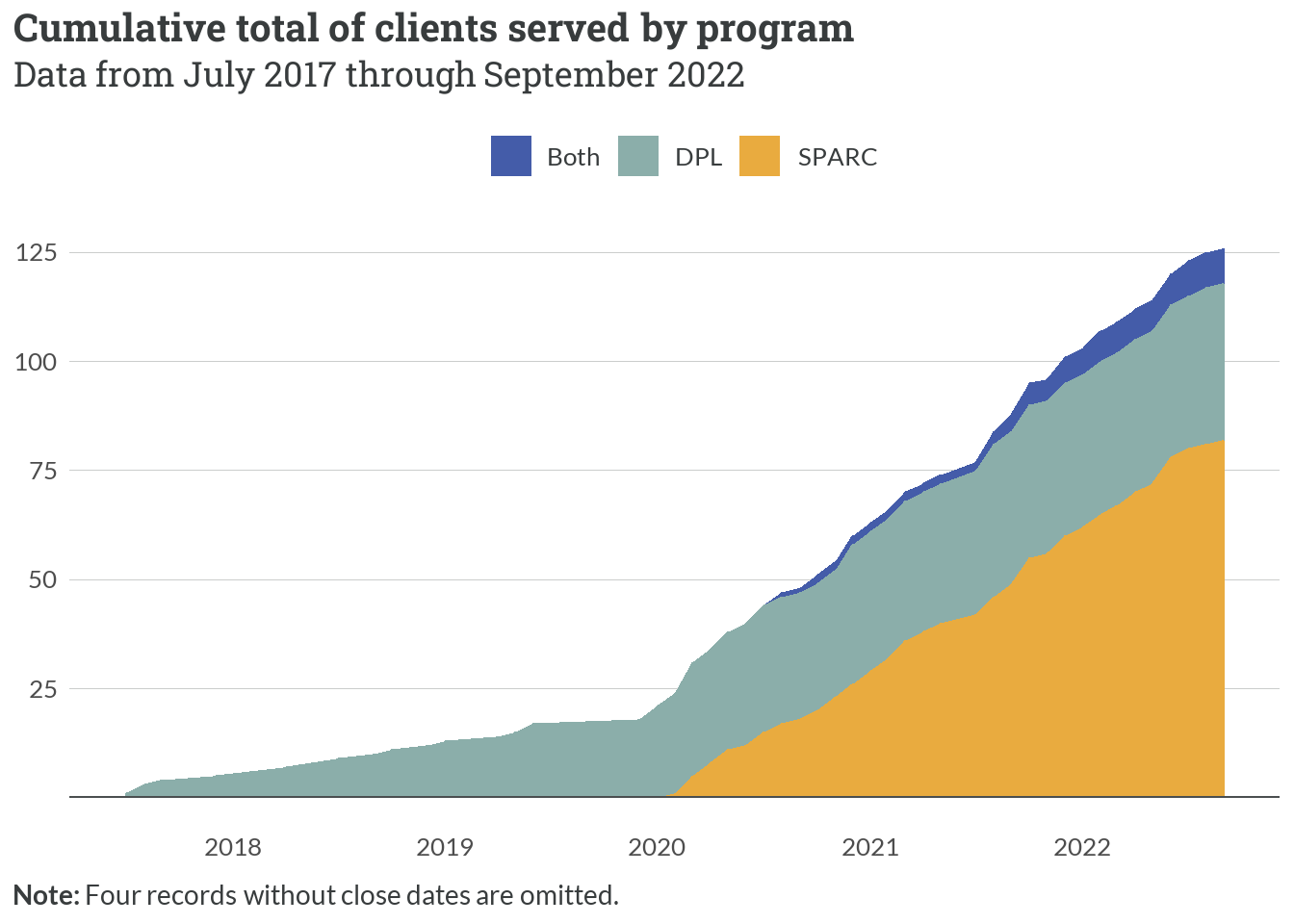

labs(title = "Cumulative total of clients served by program",
subtitle = "Data from July 2017 through September 2022",
caption = "**Note:** Four records without close dates are omitted.") +
theme_hda() +
add_zero_line("y") +
theme(
legend.position = "top"
)
PHA served DPL-only clients from 2017 through 2019, averaging fewer than ten annually. In 2020, PHA began offering SPARC, which has been used by more than 25 clients annually since. Several clients have used both DPL and SPARC assistance each year since 2020.
# Summarise data by program and year
clients_annual <- clients_total |>
drop_na(close_date) |>
count(program, year = floor_date(close_date, "year")) |>
ungroup() |>
complete(program, year, fill = list(n = 0)) |>
mutate(year = format(year, "%Y"))
# Create plot
ggplot(clients_annual, aes(x = year, y = n, fill = program)) +
geom_col(position = "stack") +
scale_fill_hda() +

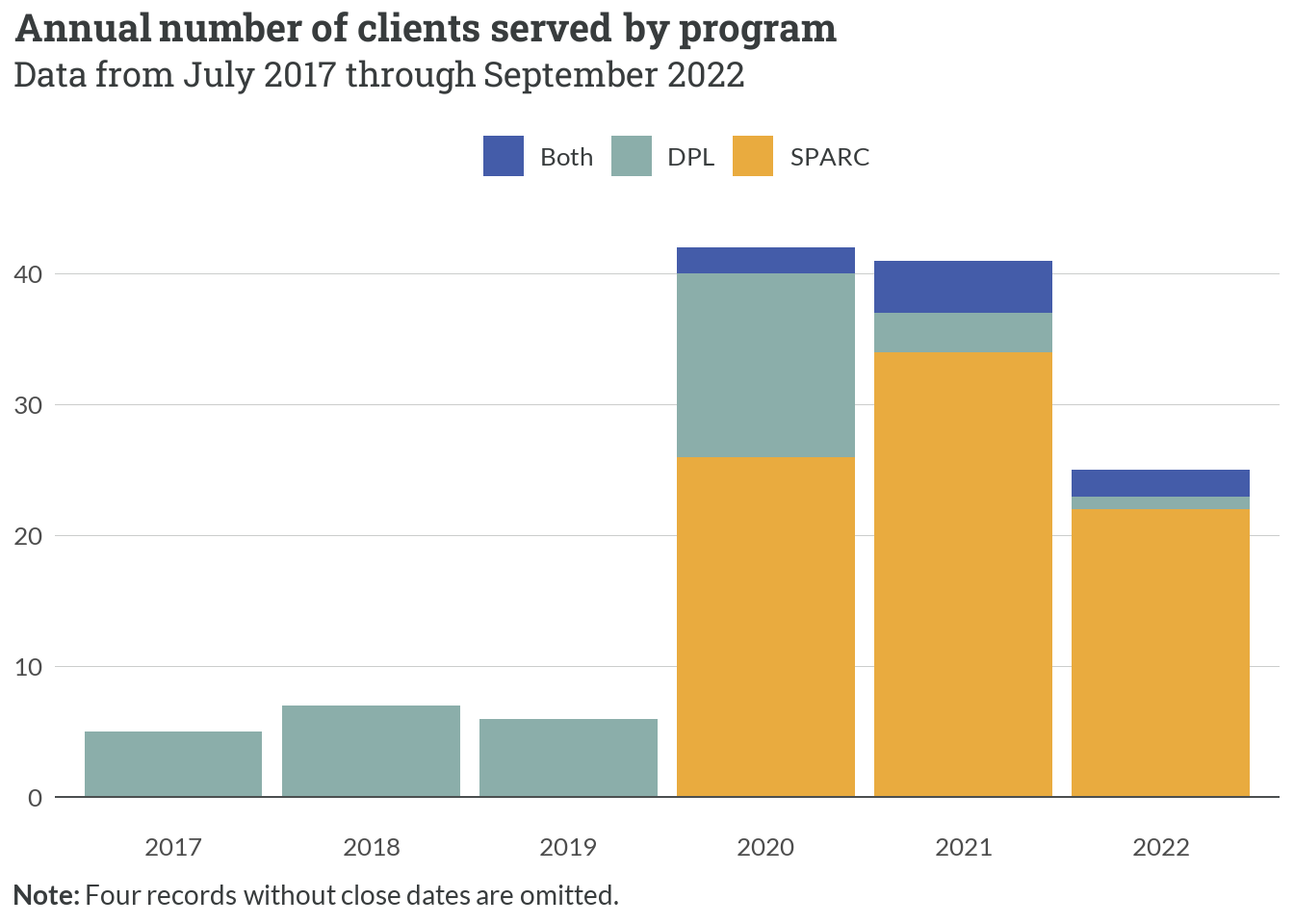

labs(title = "Annual number of clients served by program",
subtitle = "Data from July 2017 through September 2022",
caption = "**Note:** Four records without close dates are omitted.") +
theme_hda() +
add_zero_line("y") +
theme(
legend.position = "top"
)

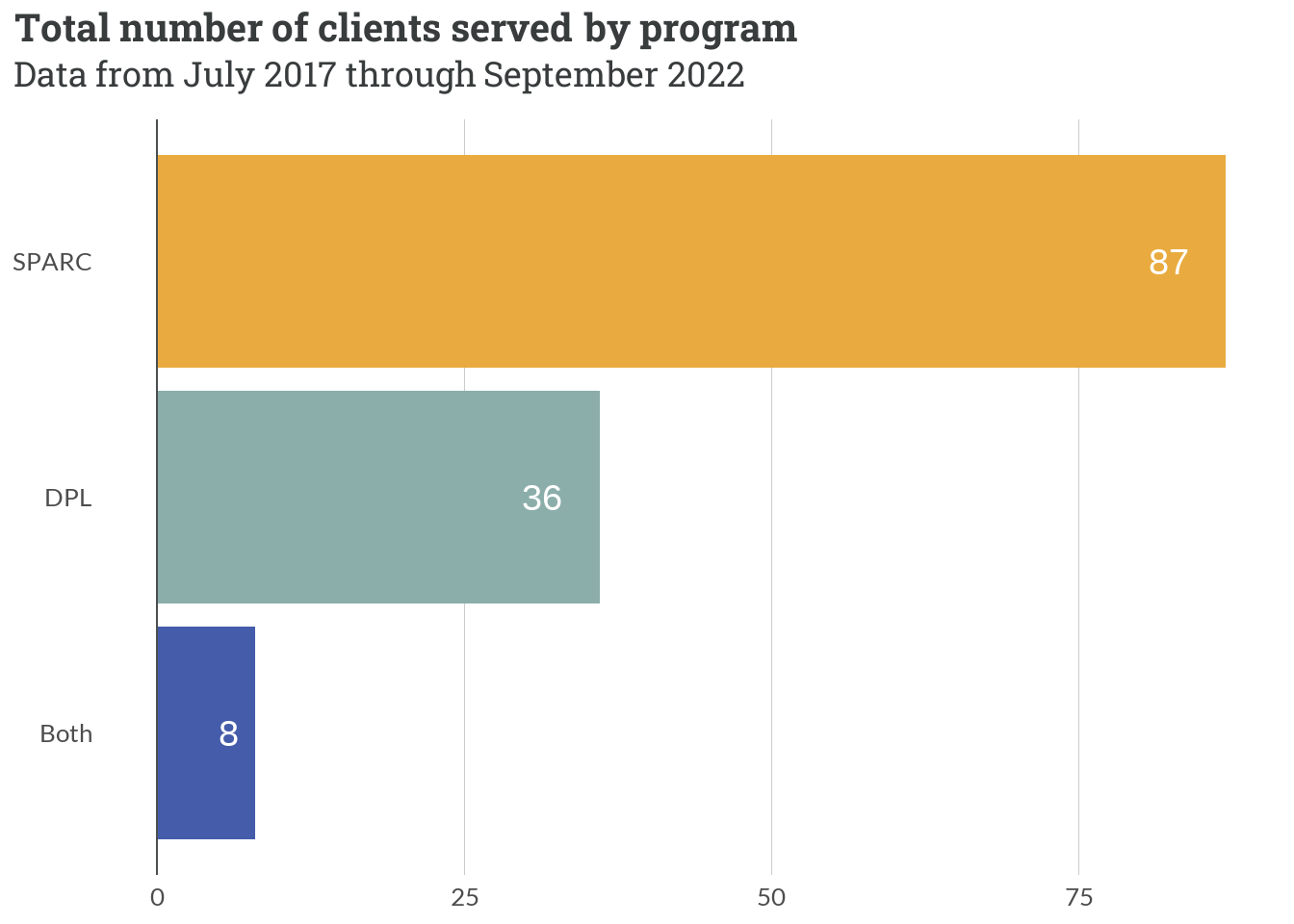

In total, two-thirds (66 percent) of all clients used SPARC only. About one quarter (27 percent) used DPL only, and just eight clients (6 percent) took advantage of both.
# Summarise data by program
clients_program <- clients_total |>
count(program)
# Create plot
ggplot(clients_program, aes(y = reorder(program, n), x = n, fill = program, label = n)) +
geom_col() +
geom_text(hjust = 2,
color = "white",
size = 5) +
scale_fill_hda() +
labs(title = "Total number of clients served by program",
subtitle = "Data from July 2017 through September 2022") +
theme_hda() +
add_zero_line("x") +
flip_gridlines()
Race and ethnicity data is only available for clients who used the DPL program.
Among the 44 clients who used the DPL program, most were white (41 percent) or Black (34 percent). Another 11 percent were Asian, with the remainder being multiracial or of another race. This is a more diverse pattern than Charlottesville as a whole, where 65 percent of residents are white, while only 15 percent of residents are Black, and 9 percent are Asian.
The share of DPL clients who are Hispanic or Latino is about 7 percent, which aligns very closely with the overall population of Charlottesville.
# Summarise clients by race
clients_race <- clients_all |>
count(race) |>
drop_na() |>
ungroup() |>
# Add percent column
mutate(pct = n/sum(n)) |>
# Add source and category columns
mutate(source = "Clients",
category = "Race",
.before = 1) |>
# Update race labels and column names to match ACS data
mutate(race = case_when(
race == "Black and White" ~ "Multiracial",
race == "Other races" ~ "Another race",
TRUE ~ race)) |>
rename(label = race,
value = n)
# Same as above for ethnicity
clients_ethnicity <- clients_all |>
count(ethnicity) |>
drop_na() |>
ungroup() |>
# Add percent column
mutate(pct = n/sum(n)) |>
# Add source and category columns
mutate(source = "Clients",
category = "Ethnicity",
.before = 1) |>
# Update race labels and column names to match ACS data
mutate(ethnicity = case_when(
ethnicity == "Hispanic" ~ "Hispanic or Latino",
ethnicity == "Not Hispanic" ~ "Not Hispanic or Latino",
TRUE ~ ethnicity)) |>
rename(label = ethnicity,
value = n)
# Add client data to ACS data
race_join <- cv_race |>
mutate(source = "Charlottesville", .before = 1) |>
bind_rows(clients_race, clients_ethnicity)
race_plot <- race_join |>
filter(category == "Race") |>
ggplot(aes(x = pct, y = source, fill = reorder(label, pct), alpha = source)) +
geom_col(position = "stack") +
scale_fill_hda(-1) +
scale_alpha_discrete(range = c(0.6, 1)) +
scale_x_continuous(labels = label_percent()) +
guides(fill = guide_legend(reverse = TRUE),
alpha = "none") +
labs(title = "Client race and ethnicity compared to Charlottesville",
subtitle = "Includes only DPL clients",
fill = "Race") +
theme_hda() +
flip_gridlines() +
theme(
legend.position = "left",
legend.justification = "left",
legend.title = element_text(hjust = 0)
)
ethnicity_plot <- race_join |>
filter(category == "Ethnicity") |>
ggplot(aes(x = pct, y = source, fill = reorder(label, pct), alpha = source)) +
geom_col(position = "stack") +
scale_fill_hda(-1) +
scale_alpha_discrete(range = c(0.6, 1)) +
scale_x_continuous(labels = label_percent()) +
guides(fill = guide_legend(reverse = TRUE),
alpha = "none") +
labs(fill = "Ethnicity",
caption = "**Source:** U.S. Census Bureau, 2020 Decennial Census P.L. 94-171 Redistricting Data.") +
theme_hda() +
flip_gridlines() +
theme(
legend.position = "left",
legend.justification = "left",
legend.title = element_text(hjust = 0)
)
race_plot + ethnicity_plot +
plot_layout(ncol = 1)
Household incomes are available for 88 of the 131 clients. Of the 43 clients with no income data, all are SPARC-only records. Six of the eight DPL clients who also used SPARC have two incomes recorded for each program—these values all differ, sometimes significantly.
# Summarise clients by household income
clients_inc <- clients_all |>
# Select only id_pha, program, and income columns
select(1, 2, 9, 10, 11) |>
# Combine DLP and SPARC incomes into one column
mutate(income = case_when(
!is.na(household_annual_income_dpl) & !is.na(household_annual_income_spc) ~ household_annual_income_dpl,
!is.na(household_annual_income_dpl) & is.na(household_annual_income_spc) ~ household_annual_income_dpl,
is.na(household_annual_income_dpl) & !is.na(household_annual_income_spc) ~ household_annual_income_spc,
TRUE ~ NA_real_
)) |>
# Add column describing income data availability
mutate(data = case_when(
!is.na(household_annual_income_dpl) & !is.na(household_annual_income_spc) ~ "Different incomes recorded",
!is.na(household_annual_income_dpl) & is.na(household_annual_income_spc) ~ "Income recorded",
is.na(household_annual_income_dpl) & !is.na(household_annual_income_spc) ~ "Income recorded",
TRUE ~ "No data"
))
# Create plot showing income data availability
clients_inc |>
group_by(program, data) |>
summarise(n = n()) |>
ggplot(aes(x = reorder(program, n, decreasing = TRUE), y = n, fill = data)) +
geom_col(position = "stack") +
scale_fill_hda() +

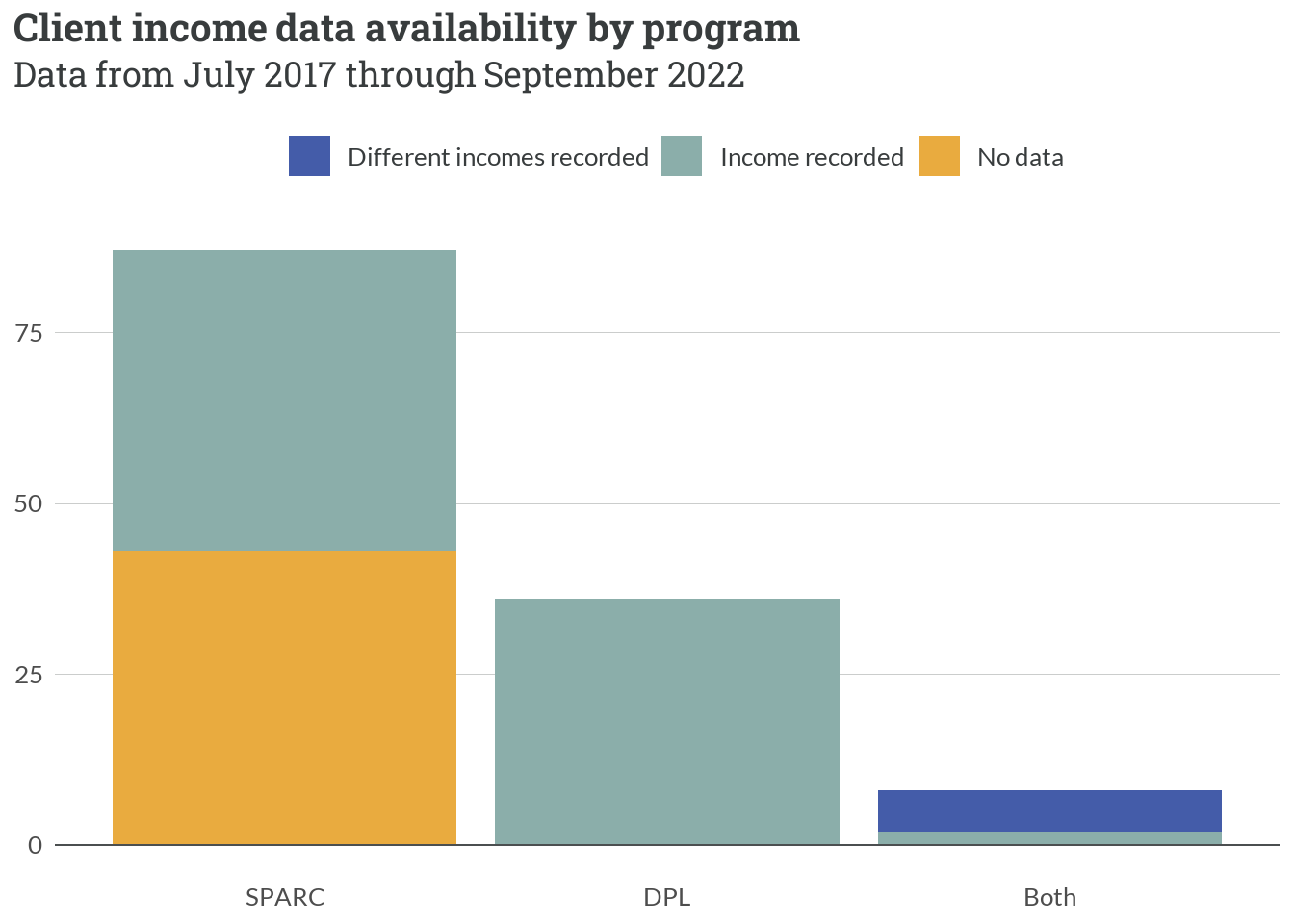

labs(title = "Client income data availability by program",
subtitle = "Data from July 2017 through September 2022") +
theme_hda() +
add_zero_line("y") +
theme(
legend.position = "top"
)

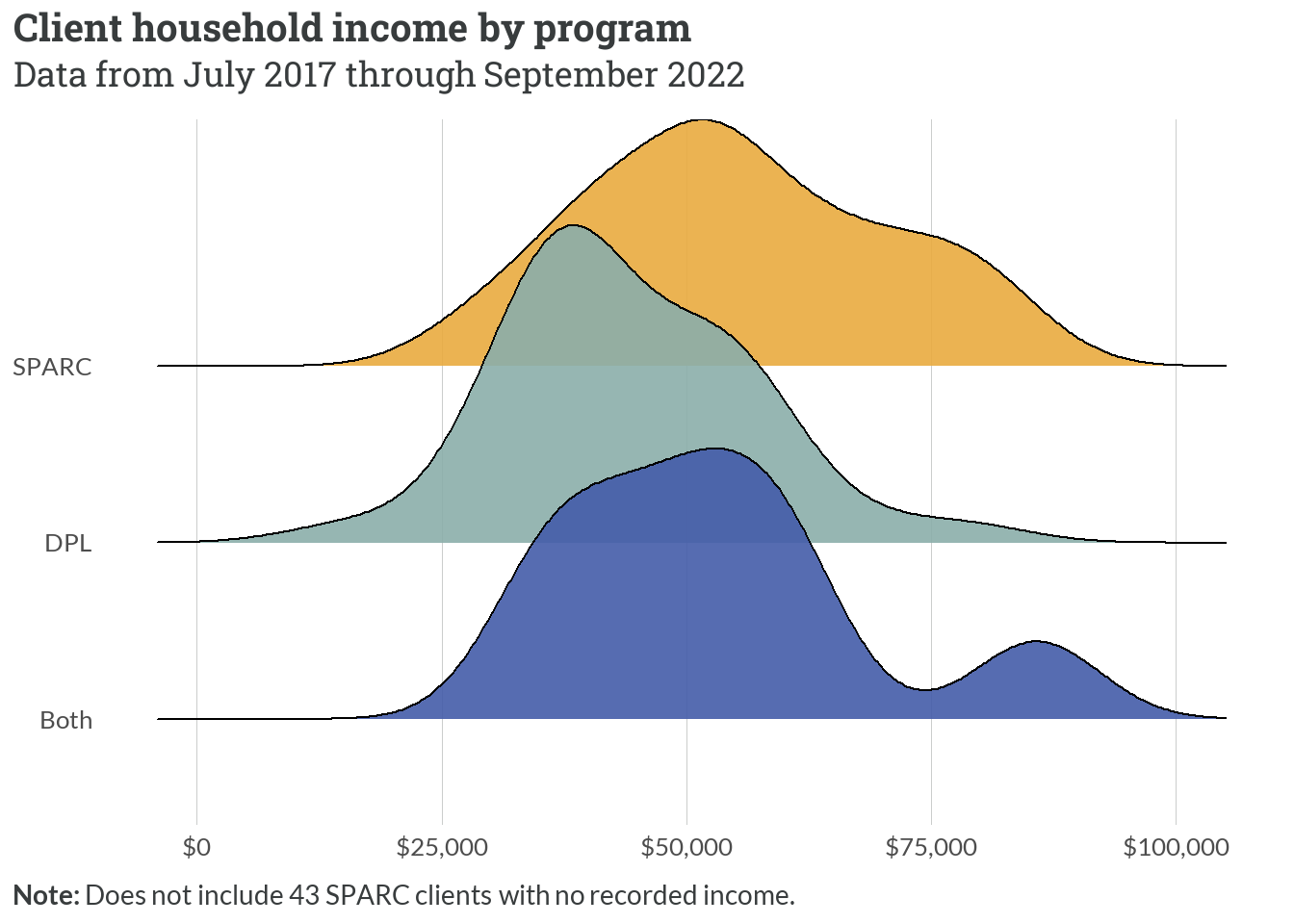

Most of PHA’s clients have household incomes between $25,000 and $60,000. However, the incomes of SPARC-only clients skew slightly higher, with some above $75,000.
# Summarise income by program
ggplot(clients_inc, aes(x = income, y = program, fill = program)) +
geom_density_ridges(alpha = 0.9) +
scale_fill_hda() +
scale_x_continuous(labels = label_dollar()) +
labs(title = "Client household income by program",
subtitle = "Data from July 2017 through September 2022",
caption = "**Note:** Does not include 43 SPARC clients with no recorded income.") +
theme_hda() +
flip_gridlines()

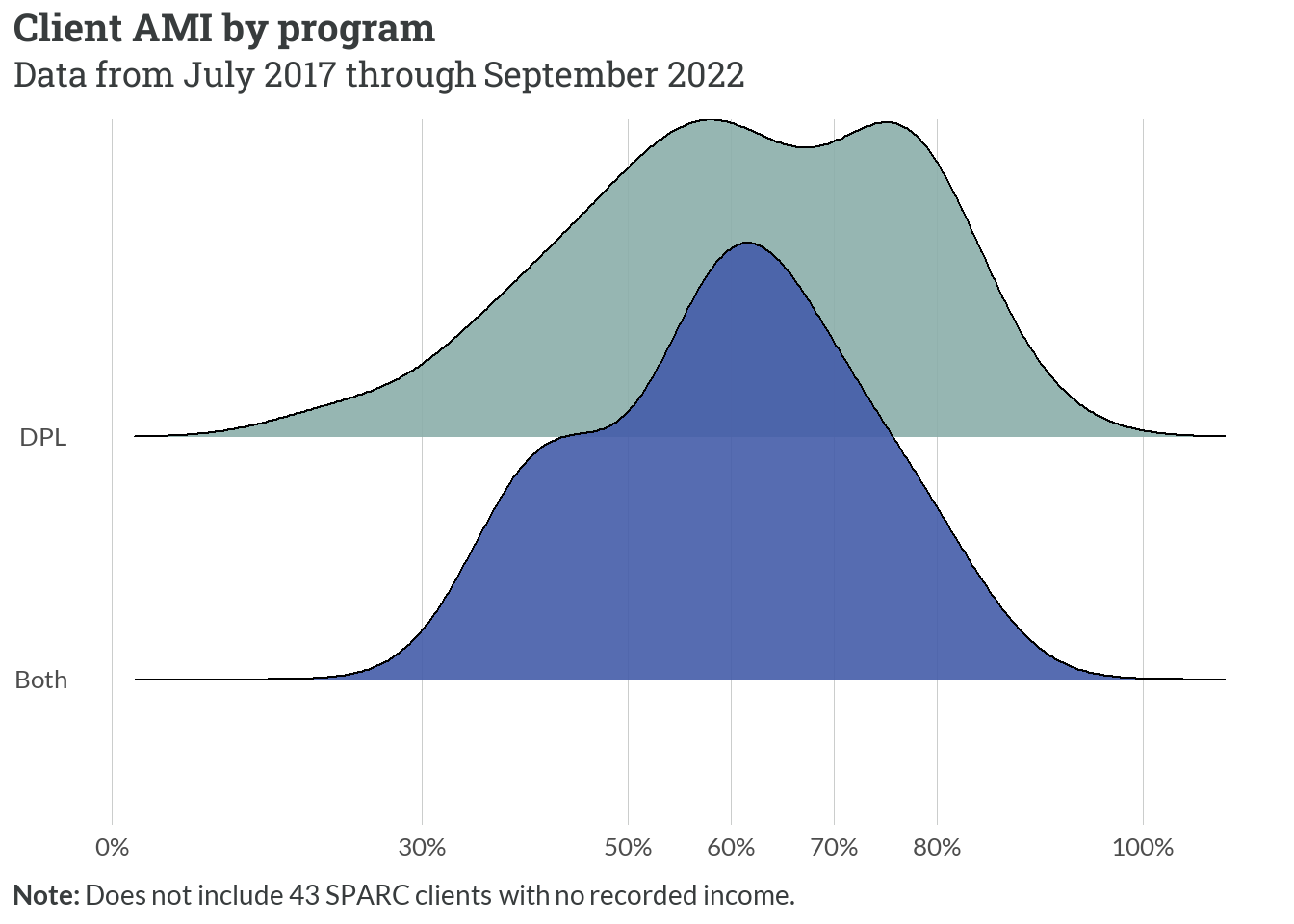

Area median incomes (AMI) are calculated only for clients who used the DPL program. AMIs are most commonly between 50 and 80 percent, in line with program eligibility guidelines. On average, AMIs of the DPL clients who also used SPARC are slightly lower than those of clients who used DPL only.
# Summarise AMI by program
clients_inc |> filter(program != "SPARC") |>
ggplot(aes(x = client_ami, y = program, fill = program)) +
geom_density_ridges(alpha = 0.9) +
scale_fill_hda() +
scale_x_continuous(labels = label_percent(), breaks = c(0, 0.3, 0.5, 0.6, 0.7, 0.8, 1)) +
labs(title = "Client AMI by program",
subtitle = "Data from July 2017 through September 2022",
caption = "**Note:** Does not include 43 SPARC clients with no recorded income.") +
theme_hda() +
flip_gridlines()
Compared to the distribution of household incomes in Charlottesville, clients are much more likely to earn more than most renters, while still making significantly less than most homeowners. Over 78 percent of clients earn between $35,000 and $75,000, versus just 27 percent of renters and 20 percent of homeowners.
# Assign client incomes to ACS categories
clients_inc_sum <- clients_inc |>
mutate(income = case_when(
income < 35000 ~ "Less than $35,000",
income >= 35000 & income < 50000 ~ "$35,000 to $49,999",
income >= 50000 & income < 75000 ~ "$50,000 to $74,999",
income >= 75000 & income < 100000 ~ "$75,000 to $99,999",
income >= 100000 ~ "$100,000 or more",
TRUE ~ "No data"
)) |>
# Filter out clients with no income data (optional)
filter(income != "No data") |>
# Summarise clients by category
count(income) |>
# Get column names to match ACS data
mutate(tenure = "Clients", .before = 1) |>
rename(estimate = n)
# Join ACS income data with client income data
clients_cv_inc <- clients_inc_sum |>
bind_rows(cv_income) |>
# Add percentages
group_by(tenure) |>
mutate(pct = estimate/sum(estimate)) |>
# Reorder income categories
mutate(income = fct_relevel(
income, "Less than $35,000", "$35,000 to $49,999", "$50,000 to $74,999",
"$75,000 to $99,999", "$100,000 or more"))
# Create plot
ggplot(clients_cv_inc, aes(y = pct, x = tenure, fill = tenure)) +
geom_col() +
facet_wrap(~income, nrow = 1, labeller = label_wrap_gen(12)) +
scale_y_continuous(labels = label_percent()) +
scale_fill_hda() +
labs(title = "Client income compared to Charlottesville",
subtitle = "Data from July 2017 through September 2022",
caption = "**Source:** U.S. Census Bureau, American Community Survey, 2017-2021 5-year estimates. Table B25118.<br>**Note:** Does not include 43 records where client income data not available.") +
theme_hda() +
add_zero_line("y") +
theme(axis.text.x = element_blank(),
legend.position = "top")

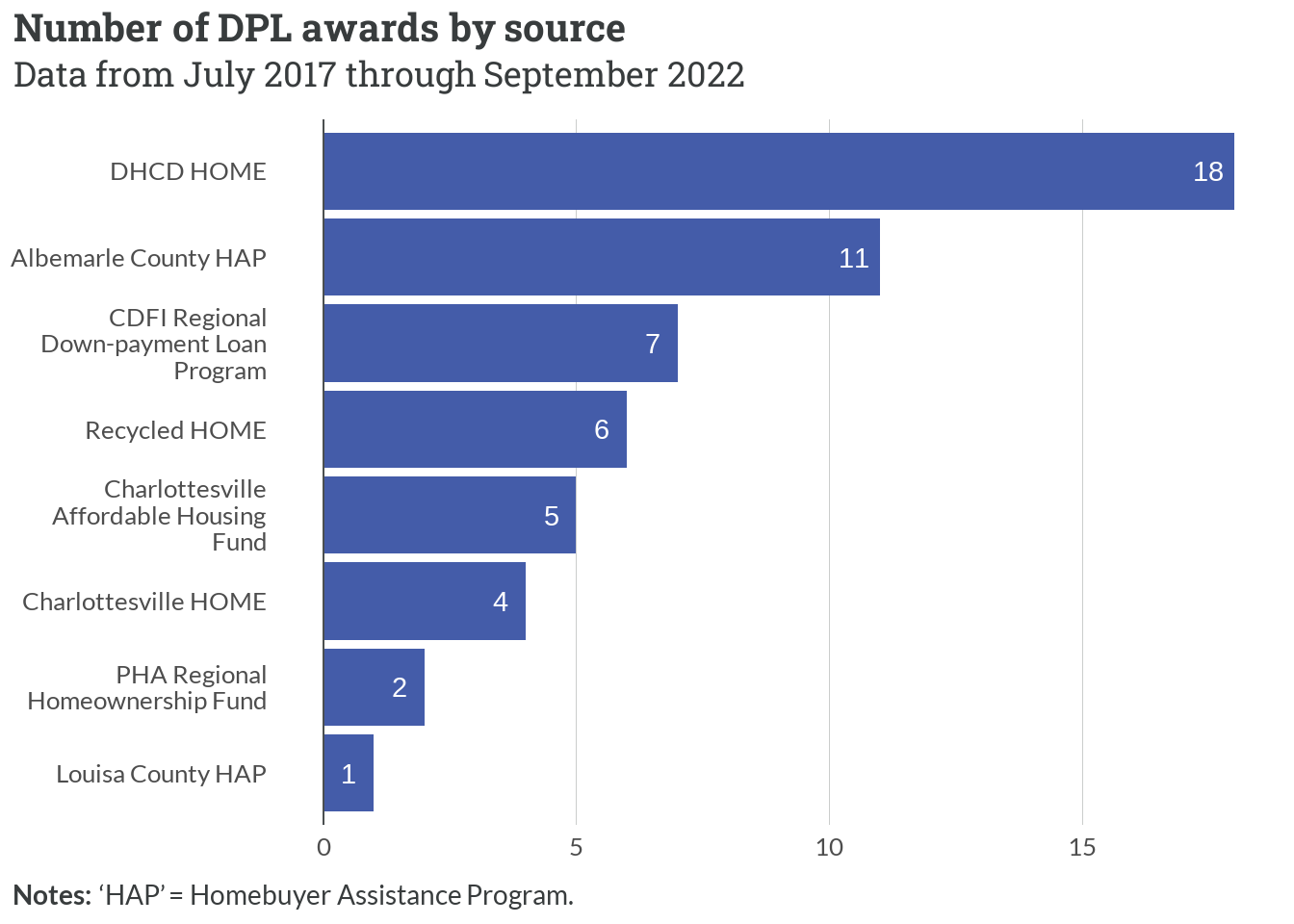

PHA’s DPL program uses funds from a number of different sources. Clients were most commonly supported by HOME funds from DHCD (18) and from Albemarle County’s Homebuyer Assistance Program (11). Overall, PHA has used eight separate sources to fund its DPL program.
dpl_sources <- clients_all |>
filter(program != "SPARC") |>
select(1, 2, 36:43) |>
pivot_longer(
cols = c(3:10),
names_to = "source",
values_to = "x"
) |>
group_by(source) |>
summarise(count = sum(x)) |>
mutate(source = case_when(
source == "dhcd" ~ "DHCD HOME",
source == "achap" ~ "Albemarle County HAP",
source == "cdfi" ~ "CDFI Regional Down-payment Loan Program",
source == "recycled_home" ~ "Recycled HOME",
source == "cahf" ~ "Charlottesville Affordable Housing Fund",
source == "city" ~ "Charlottesville HOME",
source == "pha_regional" ~ "PHA Regional Homeownership Fund",
source == "lchap" ~ "Louisa County HAP",
TRUE ~ str_to_upper(source)
)) |>
mutate(source = str_wrap(source, 20))
ggplot(dpl_sources, aes(x = count, y = reorder(source, count), label = count)) +
geom_col(fill = "#445ca9") +
geom_text(color = "#FFFFFF", nudge_x = -0.5) +
theme_hda() +
flip_gridlines() +
add_zero_line("x") +
labs(
title = "Number of DPL awards by source",
subtitle = "Data from July 2017 through September 2022",
caption = "**Notes:** 'HAP' = Homebuyer Assistance Program."
)

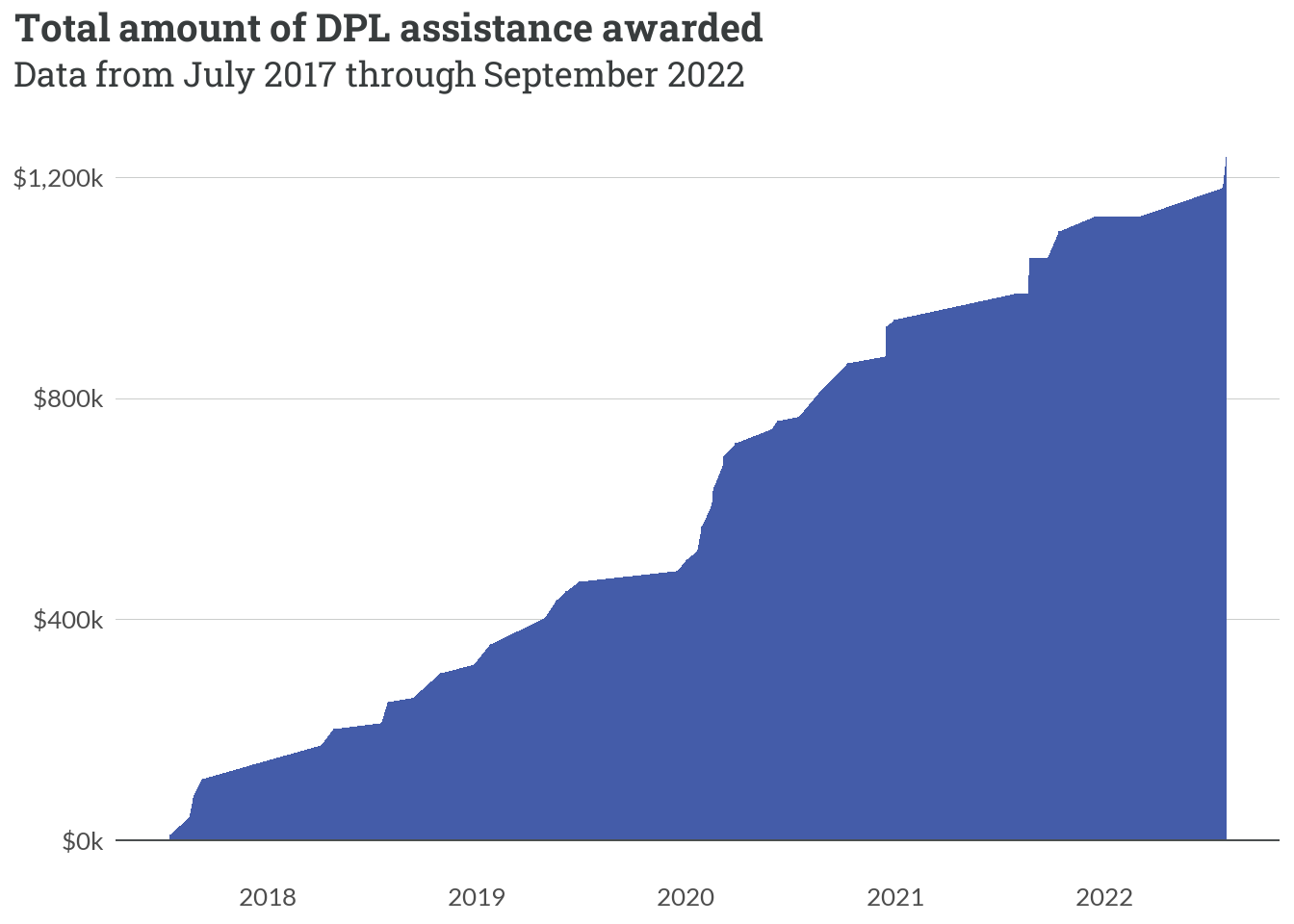

PHA awarded a total of $1,242,190 in DPL assistance from July 2017 to September 2022. This amounted to roughly $28,230 provided per client.
dpl_amount <- clients_all |>
drop_na("close_date_dpl") |>
arrange(close_date_dpl) |>
mutate(cum_sum = cumsum(pha_loans_amount))
ggplot(dpl_amount, aes(x = close_date_dpl, y = cum_sum)) +
geom_area(fill = "#445ca9") +
scale_y_continuous(labels = label_dollar(scale = 0.001, suffix = "k")) +
add_zero_line("y") +
theme_hda() +
labs(
title = "Total amount of DPL assistance awarded",
subtitle = "Data from July 2017 through September 2022"
)

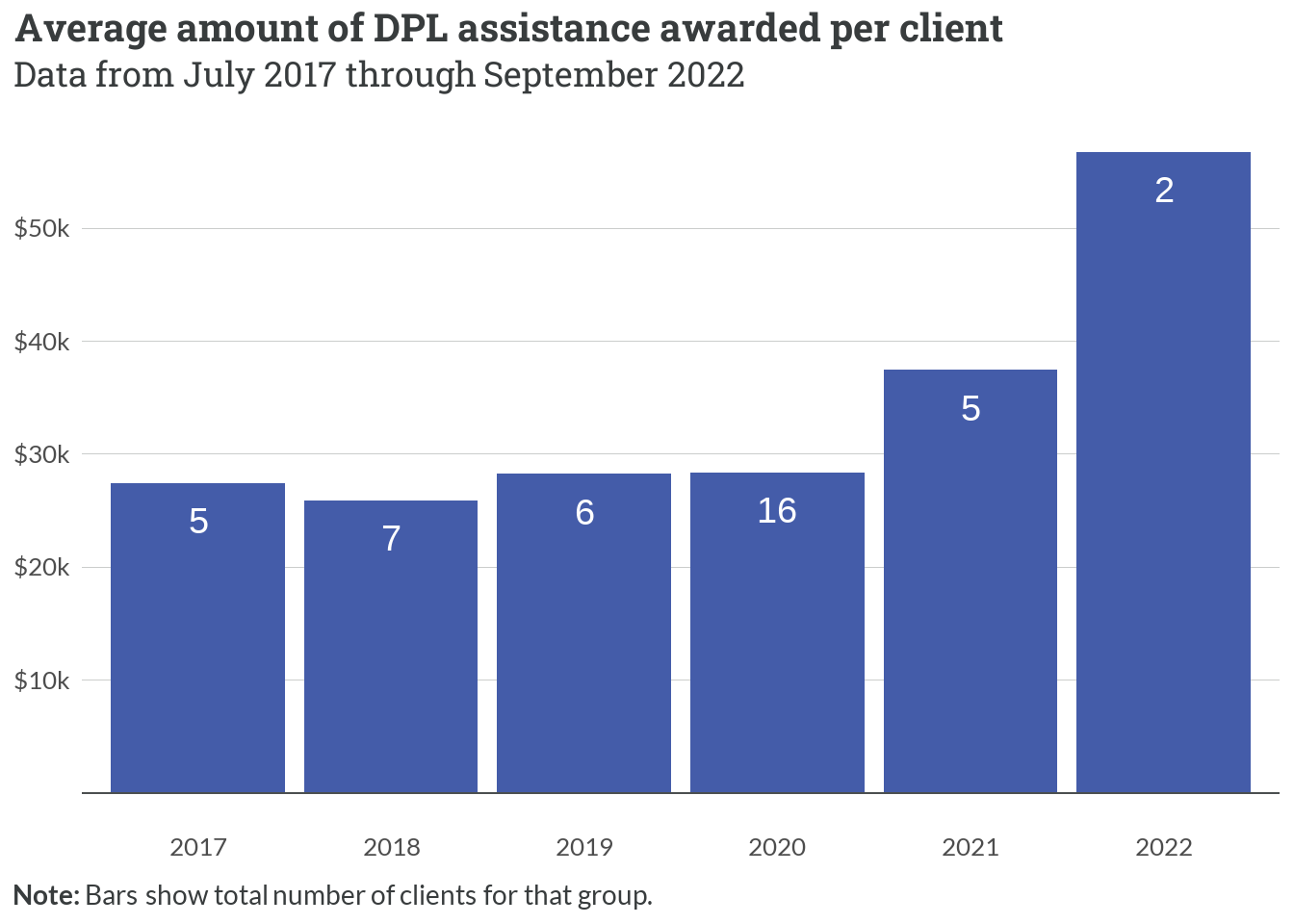

The average amount each client received stayed around $28,000 from 2017 through 2020. In 2021, that average increased to $37,435. In 2022, the two clients that received DPL each received significant DPL assistance well above prior year averages.
dpl_annual <- dpl_amount |>
mutate(year = format(close_date_dpl, format = "%Y")) |>
filter(pha_loans_amount != 0) |>
group_by(year) |>
summarise(avg = mean(pha_loans_amount),
clients = n())
ggplot(dpl_annual, aes(x = year, y = avg, label = clients)) +
geom_col(fill = "#445ca9") +
geom_text(vjust = 2,
color = "white",
size = 5) +
scale_y_continuous(labels = label_dollar(scale = 0.001, suffix = "k"),
breaks = c(10000, 20000, 30000, 40000, 50000)) +
add_zero_line("y") +
theme_hda() +
labs(
title = "Average amount of DPL assistance awarded per client",
subtitle = "Data from July 2017 through September 2022",
caption = "**Note:** Bars show total number of clients for that group."
)

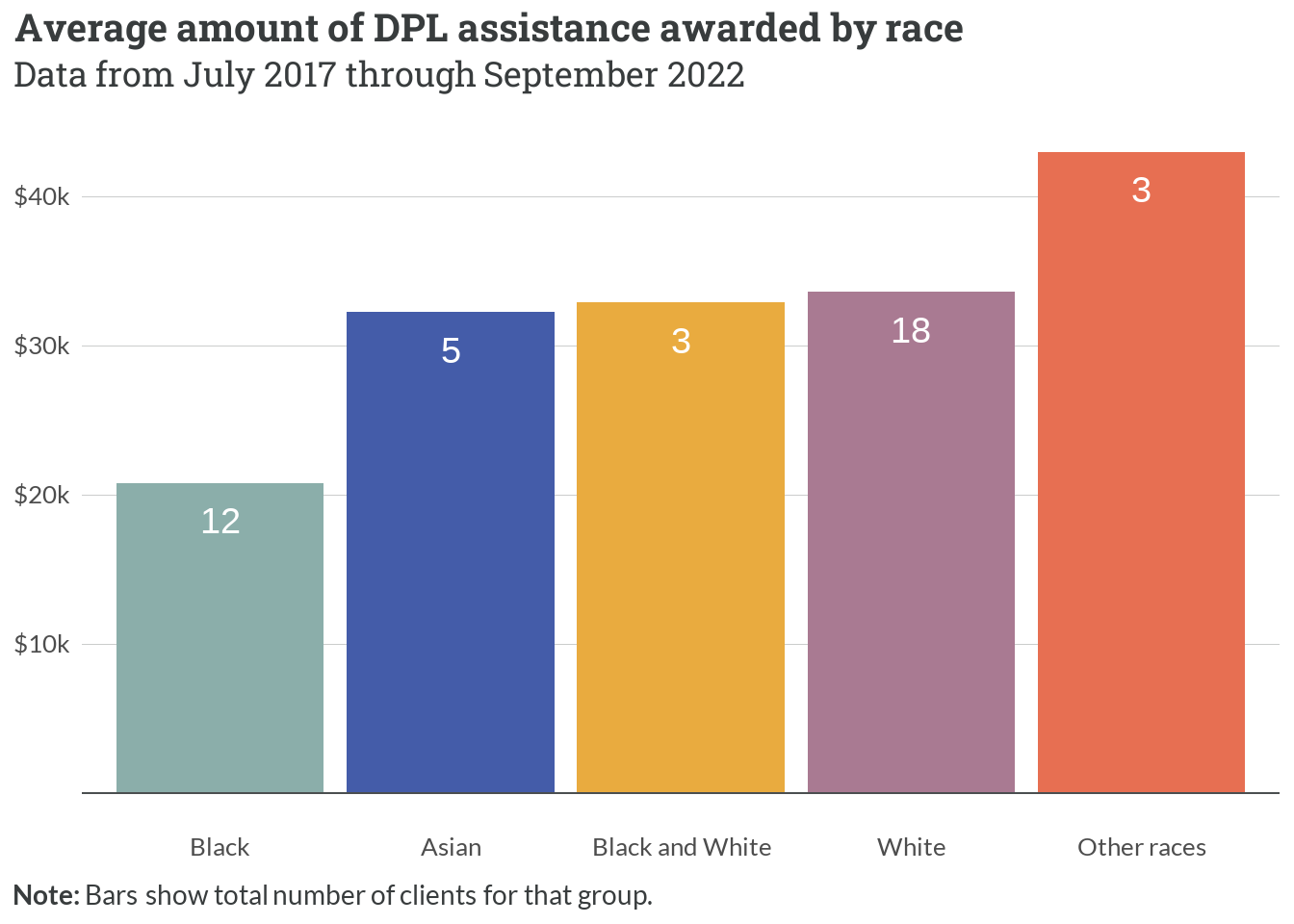

Black clients were the only race with an average DPL amount ($20,761) below the overall average. Asian, Black and White, and White-alone clients all had averages between $32,000 and $34,000. Three clients of another race tallied a notably higher average at $42,973.
dpl_race <- dpl_amount |>
filter(pha_loans_amount != 0) |>
group_by(race) |>
summarise(avg = mean(pha_loans_amount),
clients = n())
ggplot(dpl_race, aes(x = reorder(race, avg), y = avg, fill = race, label = clients)) +
geom_col() +
geom_text(vjust = 2,
color = "white",
size = 5) +
scale_fill_hda() +
scale_y_continuous(labels = label_dollar(scale = 0.001, suffix = "k"),
breaks = c(10000, 20000, 30000, 40000, 50000)) +
add_zero_line("y") +
theme_hda() +
labs(
title = "Average amount of DPL assistance awarded by race",
subtitle = "Data from July 2017 through September 2022",
caption = "**Note:** Bars show total number of clients for that group."
)

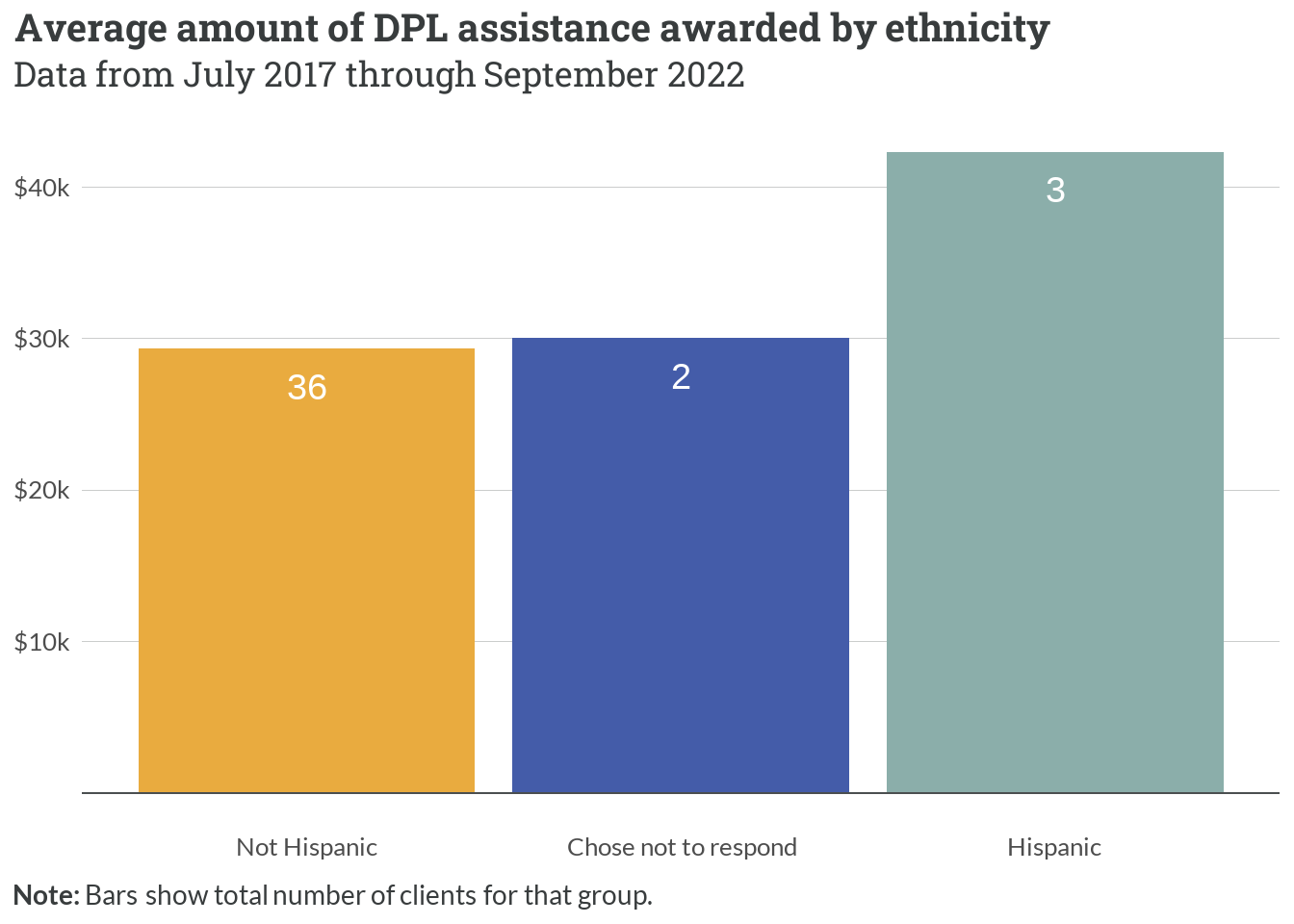

Only five total clients were Hispanic or chose not to respond when asked their ethnicity. As a result, the average DPL amount for non-Hispanic clients ($29,310) is very close to the overall client average. Among the three clients who were Hispanic, their average DPL amounted to a much larger $42,316.
dpl_ethnicity <- dpl_amount |>
filter(pha_loans_amount != 0) |>
group_by(ethnicity) |>
summarise(avg = mean(pha_loans_amount),
clients = n())
ggplot(dpl_ethnicity, aes(x = reorder(ethnicity, avg), y = avg, fill = ethnicity, label = clients)) +
geom_col() +
geom_text(vjust = 2,
color = "white",
size = 5) +
scale_fill_hda() +
scale_y_continuous(labels = label_dollar(scale = 0.001, suffix = "k"),
breaks = c(10000, 20000, 30000, 40000, 50000)) +
add_zero_line("y") +
theme_hda() +
labs(
title = "Average amount of DPL assistance awarded by ethnicity",
subtitle = "Data from July 2017 through September 2022",
caption = "**Note:** Bars show total number of clients for that group."
)
Client and property location data is only available for clients who used the DPL program.
# Get list of all localities in Virginia
va_localities <- list_counties("VA")
# Get all census tracts for Virginia
va_tracts <- tracts(state = "VA") |>
left_join(va_localities, by = c("COUNTYFP" = "county_code")) |>
st_transform(4502)
# Geocode client addresses
clients_geocode <- clients_all |>
geocode(street = client_street_address, state = client_state,
city = client_city, postalcode = client_zip,
method = "geocodio",
lat = lat,
long = long) |>
# Drop SPARC entries with no address data
drop_na(lat) |>
# Specify WGS 1984 coordinate system for lat/long data
st_as_sf(coords = c("long", "lat"),
remove = FALSE,
crs = 4326) |>
# Project into Virginia State Plane South
st_transform(4502)
# Spatial join client data with tracts and localities
clients_sf <- st_join(clients_geocode, va_tracts) |>
rename(Locality = county)
# Geocode property addresses
property_geocode <- clients_all |>
geocode(street = property_street_address, state = property_state,
city = property_city, postalcode = property_zip,
method = "geocodio",
lat = lat,
long = long) |>
# Drop SPARC entries with no address data
drop_na(lat) |>
# Specify WGS 1984 coordinate system for lat/long data
st_as_sf(coords = c("long", "lat"),
remove = FALSE,
crs = 4326) |>
# Project into Virginia State Plane South
st_transform(4502)
# Spatial join client data with tracts and localities
property_sf <- st_join(property_geocode, va_tracts) |>
rename(Locality = county)
# Save data
write_rds(clients_sf, "data/clients_sf.rds")
write_rds(property_sf, "data/property_sf.rds")The map below shows the original addresses of each client, i.e. where they lived when they applied for DPL assistance.
# Make map of clients
clients_sf <- read_rds("data/clients_sf.rds")
mapview(
clients_sf,
zcol = "Locality",
layer.name = "Client locality",
label = FALSE,
popup = FALSE
)

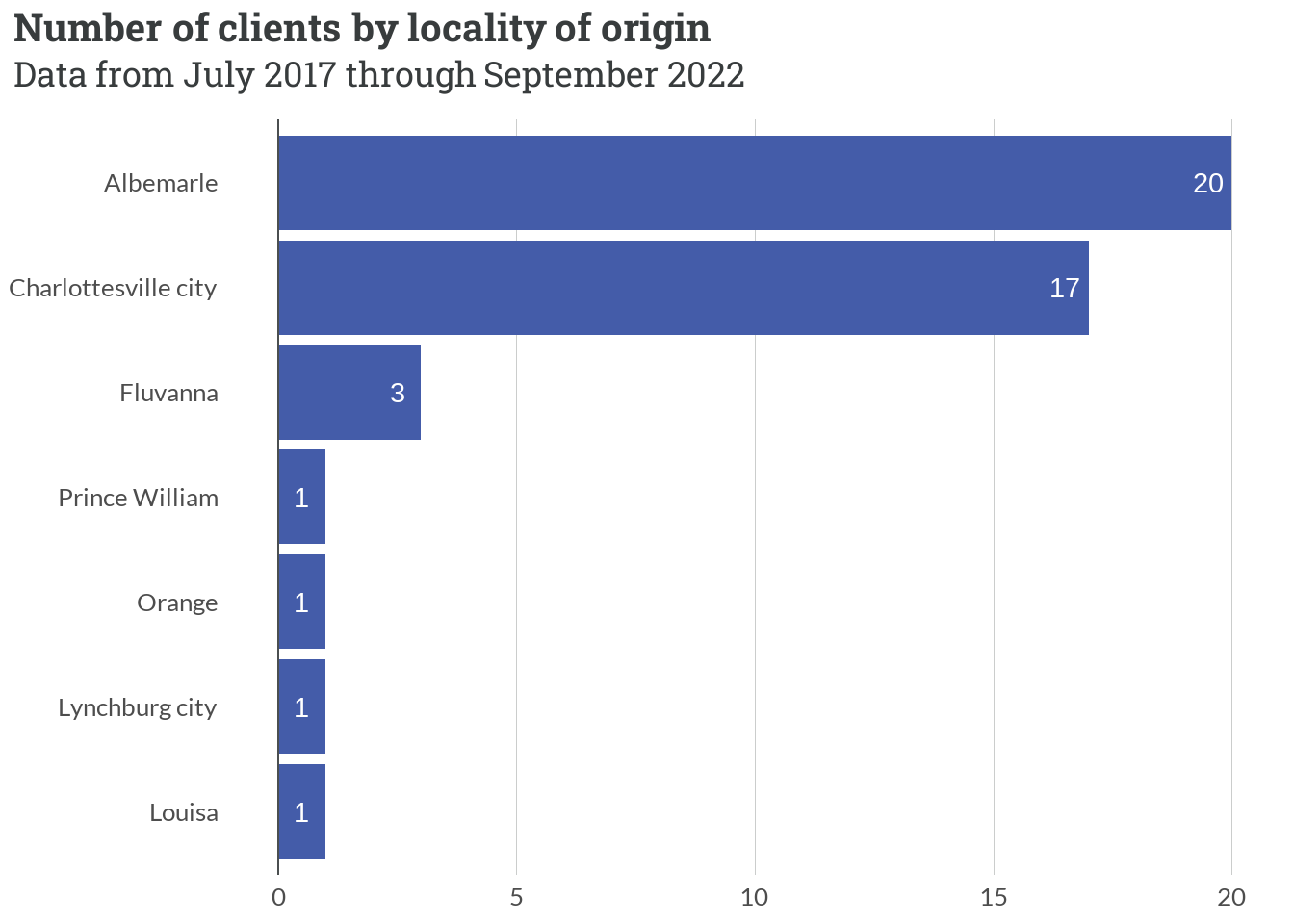

Most clients lived in either Albemarle (20) or Charlottesville (17) when they applied to the DPL program. Three clients also came from Fluvanna, while all other origin localities has one client each.
clients_locality <- clients_sf |>
count(Locality)
ggplot(clients_locality, aes(x = n, y = reorder(Locality, n), label = n)) +
geom_col(fill = "#445ca9") +
geom_text(color = "#FFFFFF", nudge_x = -0.5) +
theme_hda() +
flip_gridlines() +
add_zero_line("x") +
labs(
title = "Number of clients by locality of origin",
subtitle = "Data from July 2017 through September 2022"
)
The map below shows the addresses of homes purchased by clients, i.e. where they moved after using the DPL program.
# Make map of properties
property_sf <- read_rds("data/property_sf.rds")
mapview(
property_sf,
zcol = "Locality",
layer.name = "Property locality",
label = FALSE,
popup = FALSE
)

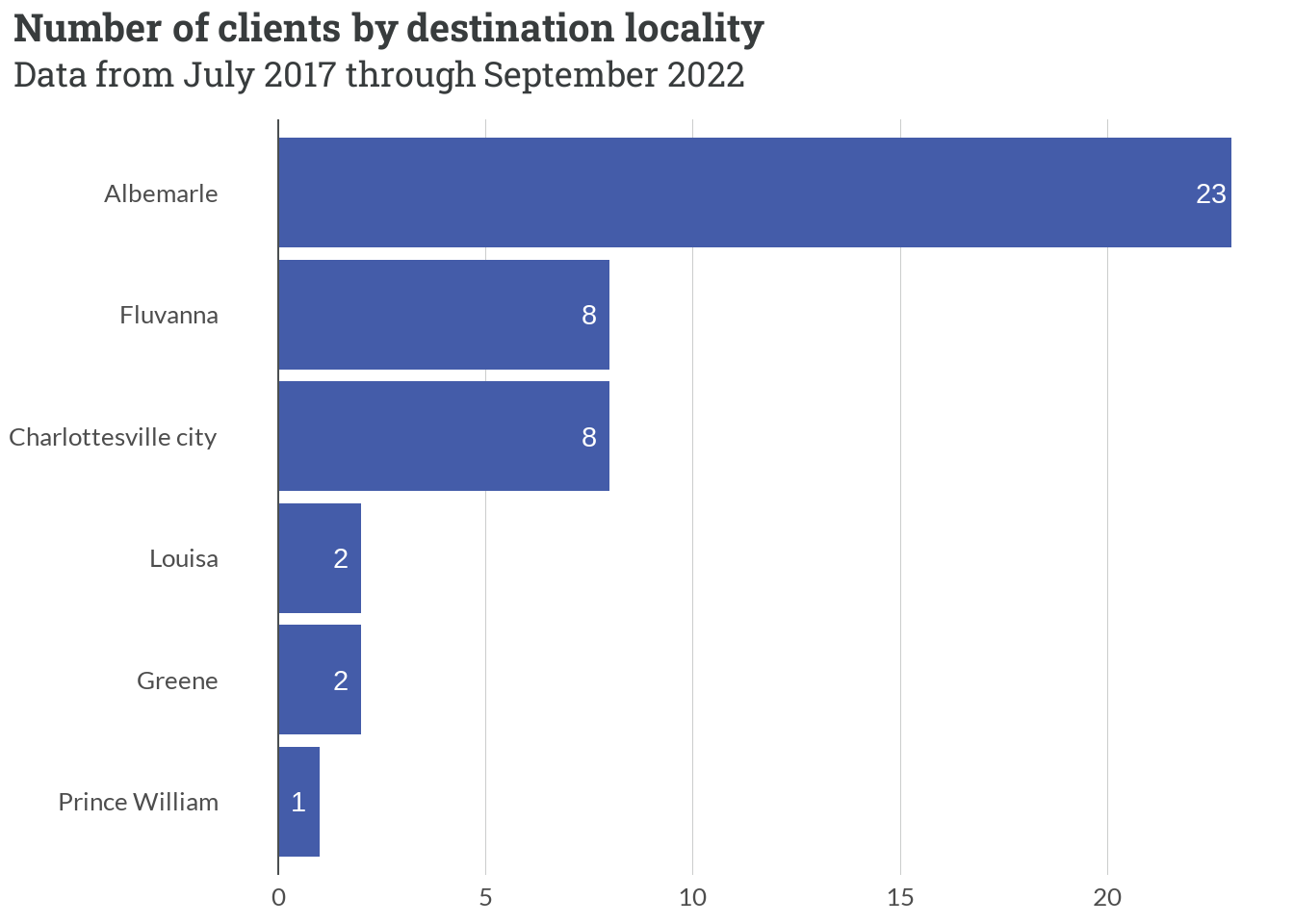

The majority of homes purchased by clients were in Albemarle (22), followed by Charlottesville (9) and Fluvanna (8). Two or fewer clients purchased homes in each of the other localities.
property_locality <- property_sf |>
count(Locality)
ggplot(property_locality, aes(x = n, y = reorder(Locality, n), label = n)) +
geom_col(fill = "#445ca9") +
geom_text(color = "#FFFFFF", nudge_x = -0.5) +
theme_hda() +
flip_gridlines() +
add_zero_line("x") +
labs(
title = "Number of clients by destination locality",
subtitle = "Data from July 2017 through September 2022"
)

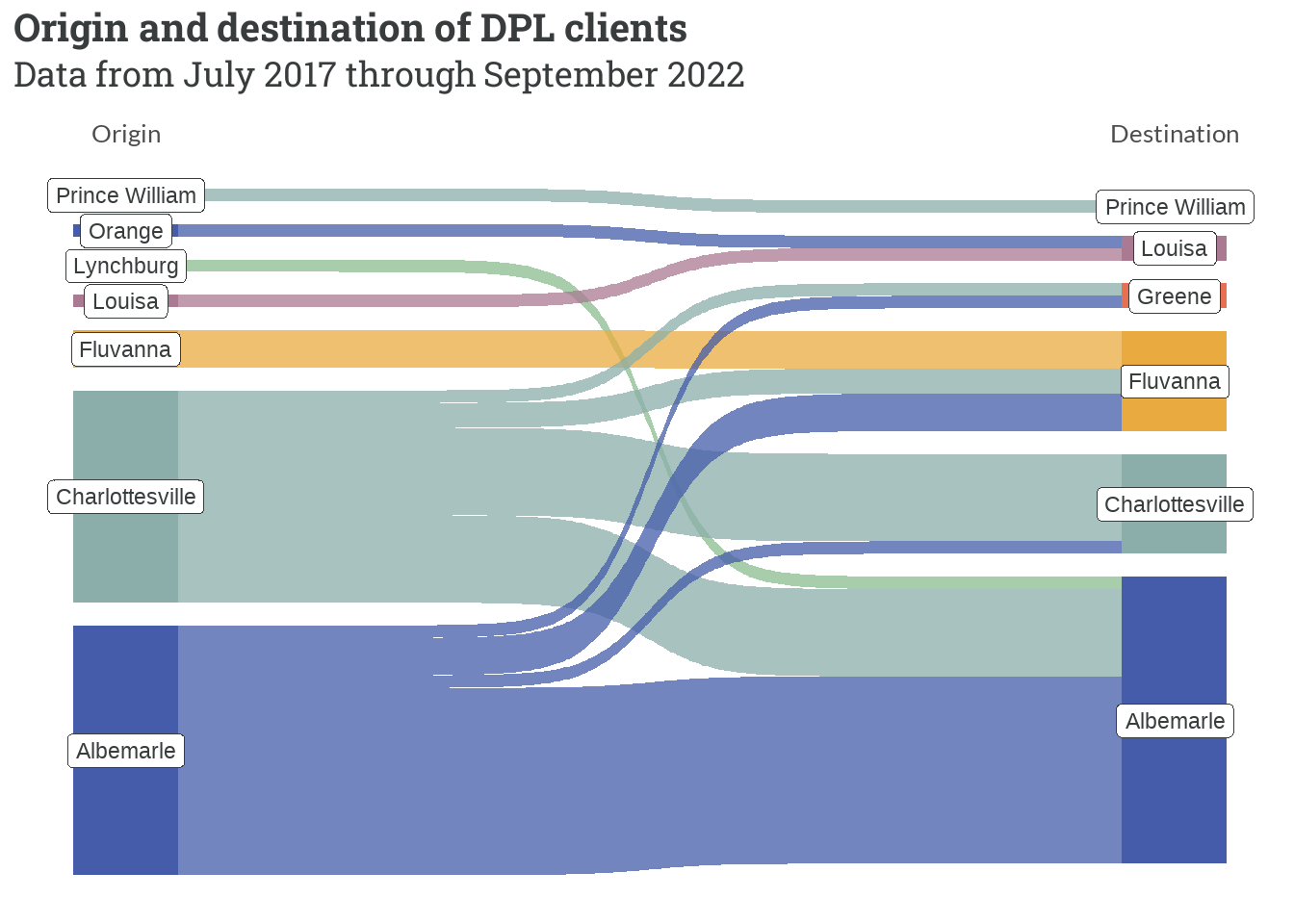

Most of PHA’s DPL clients moved from, moved to, or stayed in Albemarle County or the City of Charlottesville. A similar number of clients were originally from Albemarle (20) and Charlottesville (17), with only seven from elsewhere. Albemarle was the most common destination (22), followed by Charlottesville (9), and Fluvanna (8).
library(ggsankey)
client_moves <- st_drop_geometry(clients_sf) |>
left_join(st_drop_geometry(property_sf), "id_pha") |>
select("Origin" = 'Locality.x', "Destination" = 'Locality.y') |>
mutate(across(1:2, ~ str_remove_all(.x, " city")))
client_sankey <- client_moves |>
make_long(Origin, Destination)
ggplot(client_sankey, aes(x = x, next_x = next_x,
node = node, next_node = next_node,
fill = node, label = node)) +
geom_sankey(flow_alpha = 0.75, smooth = 15) +
geom_sankey_label(fill = "white", colour = "#383c3d", size = 3) +
scale_fill_hda(repeat_pal = TRUE) +
scale_x_discrete(expand = c(0.05, 0.05), position = "top") +
theme_hda() +
theme(axis.text.y = element_blank(),
panel.grid.major.y = element_blank()) +
labs(
title = "Origin and destination of DPL clients",
subtitle = "Data from July 2017 through September 2022"
)

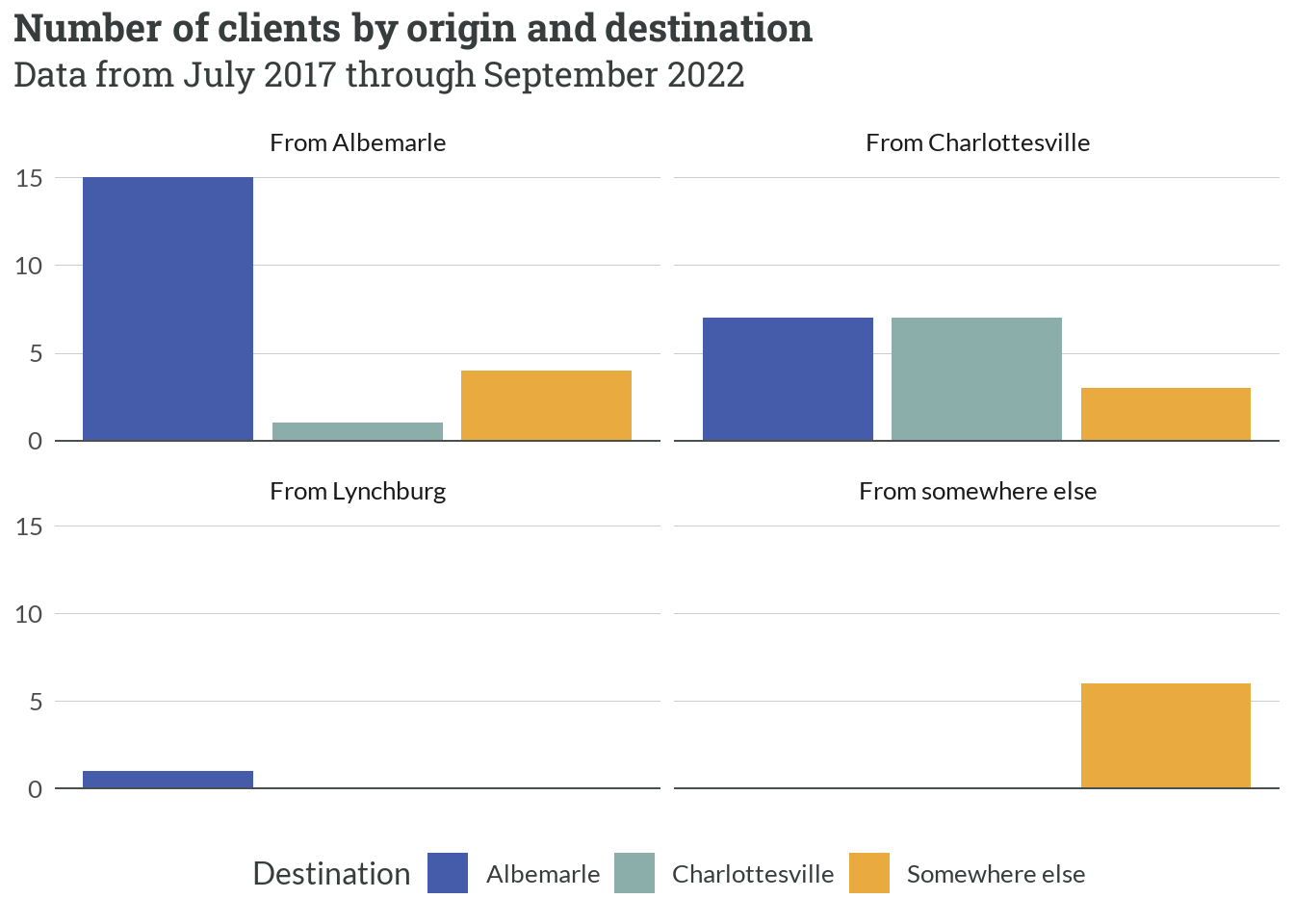

Among all clients from Albemarle, most stayed in the county, or to another county. Only one moved into Charlottesville. Just seven of the 17 clients from Charlottesville stayed in the city; the same number moved into Albemarle and the remainder to other counties.
client_moves_sum <- client_moves |>
mutate(move = case_when(
Origin == Destination ~ "Stayed",
TRUE ~ "Moved"
)) |>
mutate(origin_sum = case_when(
Origin %in% c("Fluvanna", "Louisa", "Lynchburg city", "Orange", "Prince William") ~ "From somewhere else",
TRUE ~ str_c("From ", Origin)
)) |>
mutate(destination_sum = case_when(
Destination %in% c("Fluvanna", "Louisa", "Greene", "Prince William") ~ "Somewhere else",
TRUE ~ Destination
))
ggplot(client_moves_sum, aes(x = destination_sum, fill = destination_sum)) +
facet_wrap(~origin_sum) +
geom_bar() +
scale_fill_hda() +
theme_hda() +
add_zero_line("y") +
theme(legend.position = "bottom",
legend.title = element_text(),
axis.text.x = element_blank()) +
labs(
title = "Number of clients by origin and destination",
subtitle = "Data from July 2017 through September 2022",
fill = "Destination"
)

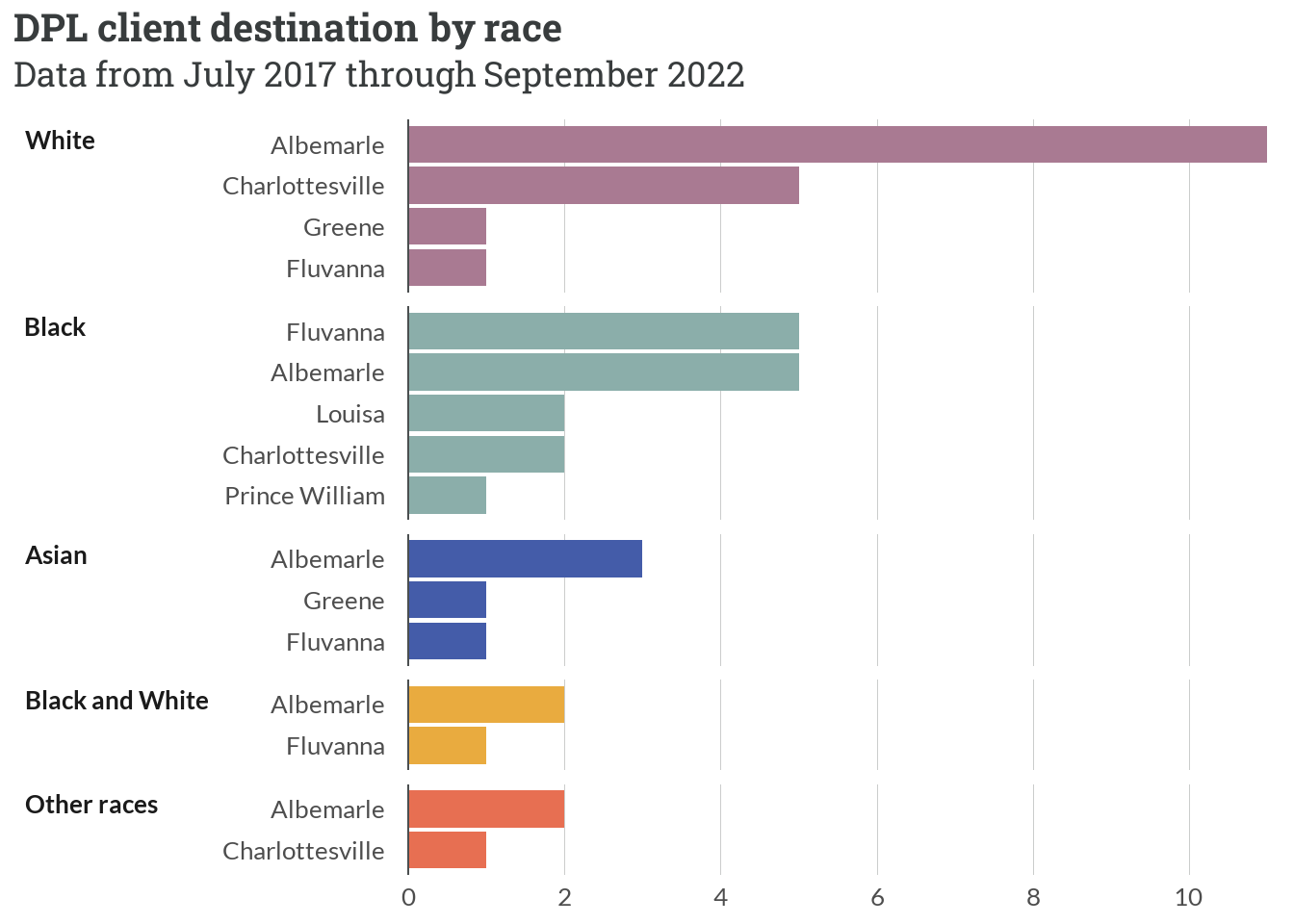

Most white clients purchased homes in Albemarle (10), followed by Charlottesville (5). Among the 15 Black clients, 5 bought in Albemarle, 4 in Fluvanna, 2 each in Louisa and Charlottesville, and 1 each in Suffolk and Prince William.
library(tidytext)
client_moves_race <- st_drop_geometry(clients_sf) |>
left_join(st_drop_geometry(property_sf), "id_pha") |>
select("race" = 'race.x', "Origin" = 'Locality.x', "Destination" = 'Locality.y') |>
mutate(across(2:3, ~ str_remove_all(.x, " city"))) |>
group_by(race, Destination) |>
summarise(n = n()) |>
mutate(race = fct_relevel(race, "White", "Black", "Asian"),
Destination = reorder_within(Destination, n, race))
ggplot(client_moves_race, aes(x = n, y = Destination, fill = race)) +
facet_grid(rows = vars(fct_relevel(race, "White", "Black", "Asian")), scales = "free_y", space = "free_y", switch = "y") +
geom_col() +
scale_x_continuous(
breaks = seq(0, 10, 2),
labels = label_number(accuracy = 1),
expand = c(0.01, 0.05)
) +
scale_y_reordered() +
scale_fill_hda() +
add_zero_line("x") +
theme_hda(flip_gridlines = TRUE) +
theme(
strip.text.y.left = element_text(angle = 0, face = "bold", vjust = 1, hjust = 0),
strip.placement = "outside"
) +
labs(
title = "DPL client destination by race",
subtitle = "Data from July 2017 through September 2022"
)
The median sales price for all clients was $224,500, but those prices vary significantly by program.
# Summarise home sales price by program
clients_inc_price <- clients_all |>
# Select only id_pha, program, income, home sales price, and race columns
select(1, 2, 9, 10, 20, 21, 53) |>
# Combine DLP and SPARC incomes into one column
mutate(income = case_when(
!is.na(household_annual_income_dpl) & !is.na(household_annual_income_spc) ~ household_annual_income_dpl,
!is.na(household_annual_income_dpl) & is.na(household_annual_income_spc) ~ household_annual_income_dpl,
is.na(household_annual_income_dpl) & !is.na(household_annual_income_spc) ~ household_annual_income_spc,
TRUE ~ NA_real_
)) |>
# Combine DLP and SPARC sales prices into one column
mutate(price = case_when(
!is.na(sale_price_dpl) ~ sale_price_dpl,
TRUE ~ sale_price_spc
))
# Generate table
clients_inc_price |>
drop_na(price) |>
group_by(program) |>
summarise(n = n(),
median = median(price),
mean = mean(price)) |>
mutate(across(3:4, ~ formattable::currency(.x, digits = 0))) |>
arrange(desc(median)) |>
kable(col.names = c("Program", "Clients", "Median sales price", "Mean sales price")) |>
kableExtra::kable_styling(
bootstrap_options = c("striped", "hover", "condensed", "responsive")
)| Program | Clients | Median sales price | Mean sales price |
|---|---|---|---|
| Both | 8 | $254,050 | $241,363 |
| SPARC | 86 | $228,800 | $226,923 |
| DPL | 36 | $184,753 | $200,497 |

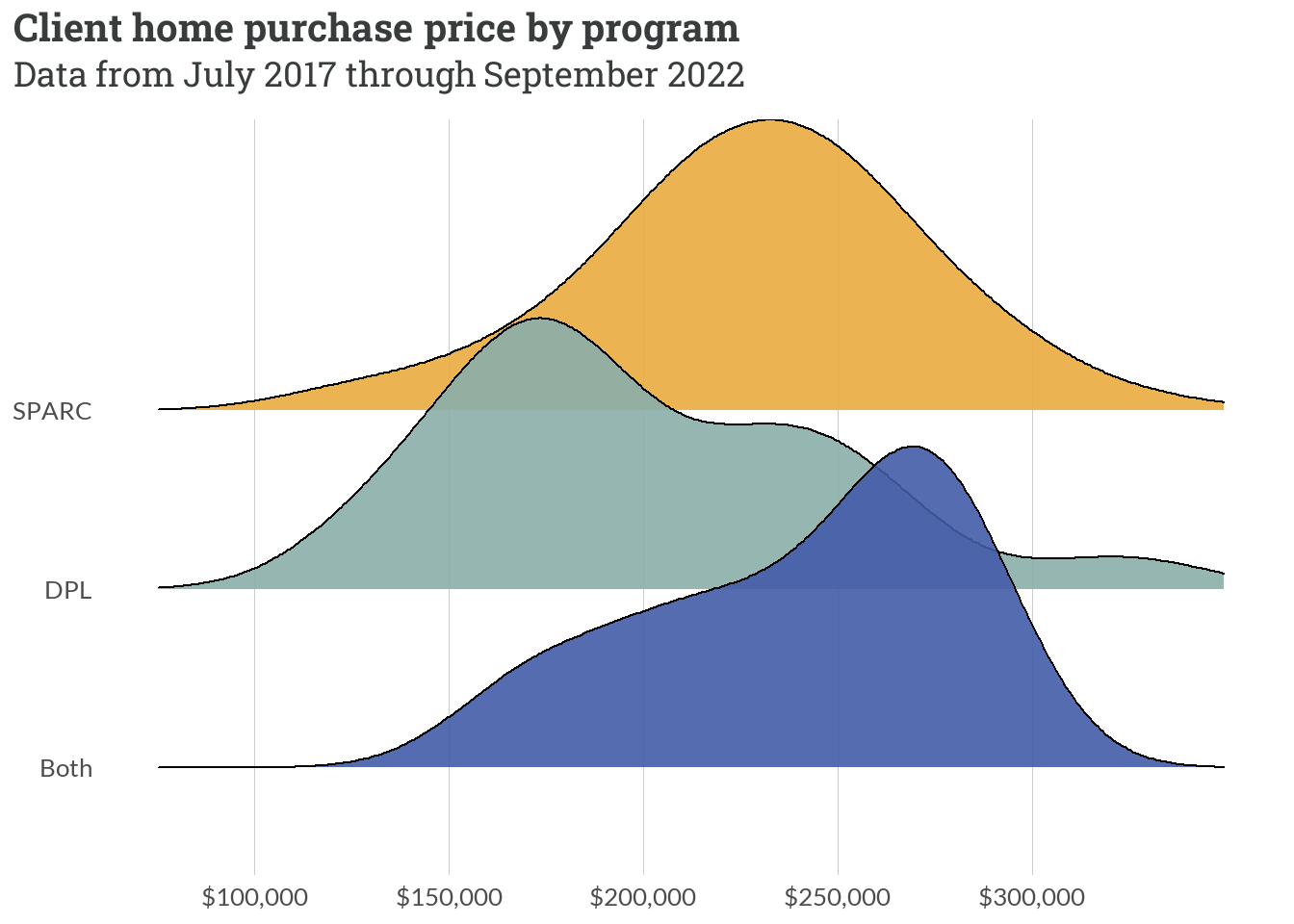

Home prices were lowest for DPL-only clients, with most between $150,000 and $200,000. SPARC-only clients purchased homes generally between $200,000 and $250,000. Clients who used both programs were able to purchase homes at higher prices, on average, than all other clients.
ggplot(clients_inc_price, aes(x = price, y = program, fill = program)) +
geom_density_ridges(alpha = 0.9) +
scale_fill_hda() +
scale_x_continuous(labels = label_dollar(),
limits = c(75000, 350000),
breaks = c(100000, 150000, 200000, 250000, 300000)) +
labs(title = "Client home purchase price by program",
subtitle = "Data from July 2017 through September 2022") +
theme_hda() +
flip_gridlines()

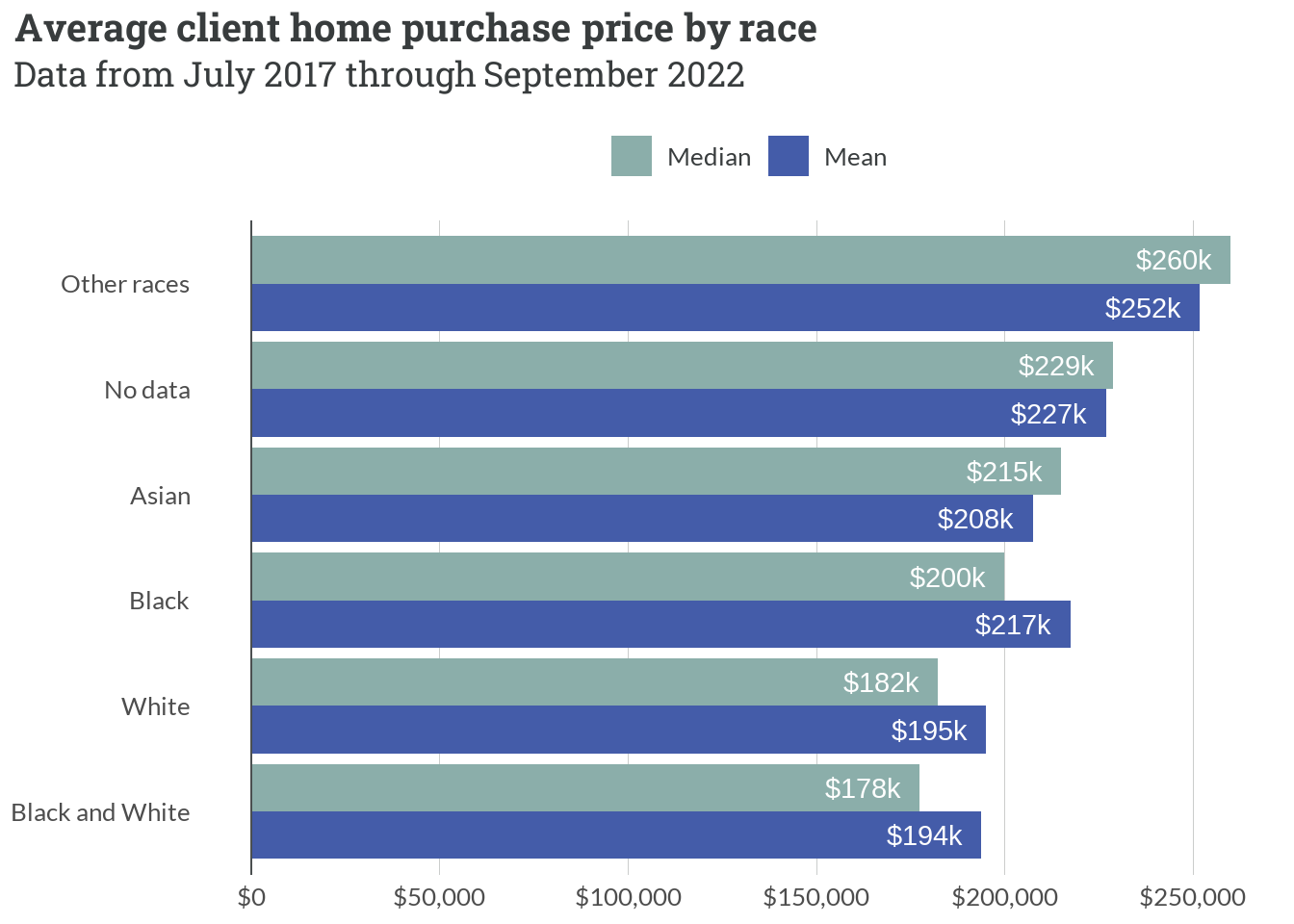

Average home prices also vary by race. Clients identifying as another race have the highest average, surpassing $250,000, although this includes only three buyers. Clients whose records do not include their race also have high average prices around $227,000. These are nearly all SPARC-only clients.
Asian and Black clients have average home prices slightly below the average for all clients, followed by clients who are White or who are White and Black. Those clients have average home prices well below $200,000.
clients_price_race <- clients_inc_price |>
drop_na(price) |>
group_by(race) |>
summarise(n = n(),
Mean = mean(price),
Median = median(price)) |>
mutate(race = replace_na(race, "No data")) |>
pivot_longer(3:4, names_to = "stat", values_to = "value")
ggplot(clients_price_race, aes(x = value, y = reorder(race, value),
fill = stat,
label = label_dollar(accuracy = 1, scale = 0.001, suffix = "k")(value))) +
geom_col(position = "dodge") +
geom_text(color = "white", hjust = 1.25, position = position_dodge(0.9)) +
scale_fill_hda() +
scale_x_continuous(labels = label_dollar(),
breaks = c(0, 50000, 100000, 150000, 200000, 250000)) +
labs(title = "Average client home purchase price by race",
subtitle = "Data from July 2017 through September 2022") +
theme_hda() +
flip_gridlines() +
add_zero_line("x") +
theme(legend.position = "top") +
guides(fill = guide_legend(reverse = TRUE))
…
# Client home attributes and price compared to neighborhood
# Client loan products compared to region (and neighborhood, if possible)This section explores methods for estimating the amount of home equity that clients have earned since the purchase of their home.
Home equity is defined as:
\[E = V - B\]
The data provided by PHA allows us to accurately calculate a client’s remaining loan balance. However, an accurate figure for a home’s current value would require a very recent arms-length sale or appraisal. Since these are not available for all homes in the dataset, we will estimate the current value with alternative data sources.
Two different methods for projecting equity will be used: the first uses annual property assessment values, while the second uses property sales records also collected by the local assessor.
The steps below show the process for estimating home equity for a sample of clients in the City of Charlottesville who purchased their home in 2017, when DPL data is first available.
Step 1: Select clients
Select the earliest recorded DPL clients who purchased a home in the City of Charlottesville in 2017. This gives us the longest ownership timeframe for accruing home equity.
prop_2017 <- property_sf |>
# Select clients with close dates in 2017
filter(as_date(close_date_dpl) < as_date("2018-01-01")) |>
# Homes purchased in Charlottesville only
filter(Locality == "Charlottesville city") |>
# Keep only necessary columns
select(id_pha, close_date_dpl, property_street_address, sale_price_dpl,
appraised_value, mortgage_amount_dpl, interest_rate_dpl, GEOID)Step 2: Assign neighborhoods
Determine which neighborhoods the homes are in. The averages for these neighborhoods will be used as benchmarks. Neighborhood boundaries are the Planning Neighborhood Areas from the City of Charlottesville.
# Load in Charlottesville residential parcels
cv_parcels <- read_rds("data/cv_parcels.rds")
# Load in Charlottesville neighborhood boundaries
cv_nhoods <- st_read("data/shp/Planning_Neighborhood_Area.shp", quiet = TRUE) |>
st_transform(4502)
# Spatial join with neighborhoods and parcel records
prop_2017 <- prop_2017 |>
st_join(cv_nhoods) |>
st_join(cv_parcels)Step 3: Find change in neighborhood assessments
Calculate the change in median assessed value from 2017 to 2022 for each neighborhood. Only single-family residential parcels are included.
# Spatial join all parcels to neighborhoods
cv_parcels_nhood <- cv_parcels |>
# Convert parcels to centroid points
st_centroid() |>
# Spatial join
st_join(cv_nhoods) |>
# Join annual assessment data by parcel
left_join(cv_assess, by = "ParcelNumber")
# Calculate median values by year
cv_value_nhood <- cv_parcels_nhood |>
# Drop geometry
st_drop_geometry() |>
# Group by neighborhood and year
group_by(NAME, TaxYear) |>
# Calculate groupwise median
summarise(assessment = median(TotalValue)) |>
# Filter to neighborhoods where homes are
filter(NAME %in% c("The Meadows", "Fifeville")) |>
# Add field to mark values as neighborhood average
mutate(value = "Neighborhood average")Step 4: Compare change in client and neighborhood assessments
Calculate the percent change in assessed value for client homes and their respective neighborhoods.
# Combine percent change in assessments for homes and neighborhoods
prop_assess <- prop_2017 |>
# Drop geometry
st_drop_geometry() |>
# Join annual assessment data by parcel
left_join(cv_assess, by = "ParcelNumber") |>
# Keep only necessary columns
select(NAME, TaxYear, assessment = TotalValue) |>
# Add field to mark values as client home
mutate(value = "Client home") |>
# Add neighborhood values
bind_rows(cv_value_nhood) |>
# Group by value designation and neighborhood
group_by(value, NAME) |>
# Arrange ascending by year
arrange(TaxYear) |>
# Calculate cumulative percent change
mutate(chg = assessment - first(assessment),
pct_chg = chg / first(assessment))Following the methods above leaves us with two homes within the City of Charlottesville that DPL clients purchased in 2017. These homes are located on the following blocks and neighborhoods.
Exact addresses are omitted from this narrative for privacy.

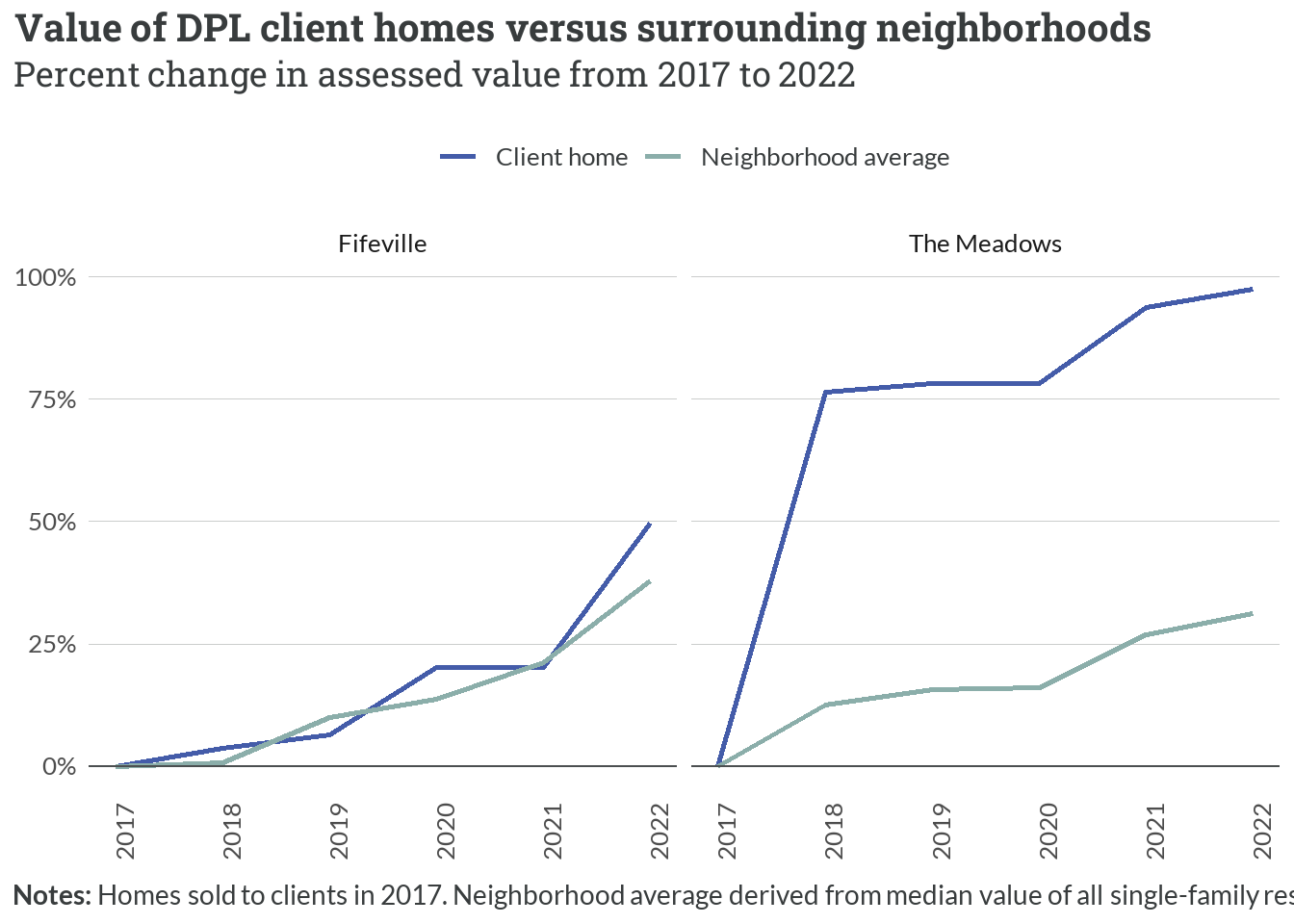

The chart below demonstrates how we can compare the change in assessed value for homes purchased by clients to the average change observed in their respective neighborhoods.
ggplot(prop_assess, aes(x = TaxYear, y = pct_chg, color = value)) +
geom_line(linewidth = 1) +
facet_wrap(~NAME) +
scale_y_continuous(labels = label_percent()) +
scale_color_hda() +
theme_hda() +
theme(legend.position = "top",
axis.text.x = element_text(angle = 90)) +
add_zero_line("y") +
labs(title = "Value of DPL client homes versus surrounding neighborhoods",
subtitle = "Percent change in assessed value from 2017 to 2022",
caption = "**Notes:** Homes sold to clients in 2017. Neighborhood average derived from median value of all single-family residential properties.")
The plot on the left shows a client’s home they purchased in Fifeville in 2017 increasing in total assessed value by almost 50 percent by 2022, compared to a neighborhood average increase of 38 percent.
The plot on the right shows the same for a home purchased by a client in The Meadows. In this case, the assessed value of the client’s home almost doubled (76 percent) in the first year following their closing, likely due to the city assessor making a major adjustment following the sale of this home. (It was assessed for $104,500 in 2017, but sold for $178,700.) Since 2018, the home’s value has increased in close pace with its surrounding neighborhood.
prop_assess_tbl <- prop_assess |>
filter(TaxYear %in% c(2017, 2022)) |>
select(1, 4, 2, 3, 6) |>
pivot_longer(cols = 4:5, names_to = "data", values_to = "x") |>
pivot_wider(names_from = TaxYear,
values_from = x) |>
pivot_wider(names_from = data,
values_from = '2022') |>
rename(assessment17 = '2017', assessment22 = assessment) |>
group_by(NAME, value) |>
mutate(across(where(is.double), ~ replace_na(.x, 0))) |>
summarise(across(where(is.double), ~ sum(.x))) |>
ungroup()
prop_assess_tbl |>
mutate(across(3:4, ~ formattable::currency(.x, digits = 0)),
pct_chg = formattable::percent(pct_chg, digits = 1)) |>
kable(col.names = c("Neighborhood", "Measure", "2017 assessment", "2022 assessment", "Change"),
align = "llccc",
escape = F) |>
kableExtra::kable_styling(
bootstrap_options = c("hover", "condensed", "responsive", "striped"),
font_size = 14
) |>
kableExtra::collapse_rows(1, valign = "top")| Neighborhood | Measure | 2017 assessment | 2022 assessment | Change |
|---|---|---|---|---|
| Fifeville | Client home | $117,700 | $176,100 | 49.6% |
| Fifeville | Neighborhood average | $191,300 | $263,950 | 38.0% |
| The Meadows | Client home | $104,500 | $206,400 | 97.5% |
| The Meadows | Neighborhood average | $250,800 | $329,300 | 31.3% |
Step 5: Find estimated equity
Calculate the estimated equity for homeowners using average neighborhood assessment increases as the benchmark.
Here, we apply the average percent increase by neighborhood to the each home’s original sales price. This gives us an estimated present value from which to calculate home equity.
The following assumptions are made:
# Extract the percent change in average assessed value by neighborhood
nhood_pct <- prop_assess_tbl |>
filter(value == "Neighborhood average") |>
select(1, 5)
# Run calculations to estimate equity
prop_equity <- prop_2017 |>
# Drop geometry
st_drop_geometry() |>
# Join neighborhood assessment change data
left_join(nhood_pct, "NAME") |>
# Keep only necessary columns
select(2, 3, 4, 6, 7, 10, 21) |>
# Calculate monthly payment (principal and interest only)
mutate(pmt = mortgage_amount_dpl*((interest_rate_dpl/12)/(1-(1+(interest_rate_dpl/12))^(-360)))) |>
# Calculate number of months (payments) between closing and end of 2022
mutate(months = (interval(close_date_dpl, as_date("2022-12-31"))) %/% months(1)) |>
# Calculate remaining loan balance
mutate(balance = (pmt/(interest_rate_dpl/12)) * (1 - (1/(1+(interest_rate_dpl/12))^(360-months)))) |>
# Calculate estimated home value based on neighborhood assessment change
mutate(est_val = sale_price_dpl * (1 + pct_chg)) |>
# Calculate home equity
mutate(equity = est_val - balance)The table below shows the inputs and results from the calculations above.
prop_equity_table <- prop_equity |>
select(2, 1, 3, 4, 5, 7:12) |>
mutate(property_street_address = case_when(
str_detect(property_street_address, "2302") ~ "North Berkshire Rd",
TRUE ~ "Orangedale Ave"
)) |>
mutate(
close_date_dpl = as.character(close_date_dpl),
interest_rate_dpl = percent(interest_rate_dpl, digits = 3),
pct_chg = percent(pct_chg, digits = 1),
across(c(3,4,7,9:11), ~ currency(.x, digits = 0)),
) |>
mutate(across(3:11, ~ as.character(.x))) |>
pivot_longer(cols = 2:11, names_to = "name", values_to = "values") |>
pivot_wider(names_from = property_street_address, values_from = 3) |>
mutate(name = case_when(
name == "close_date_dpl" ~ "Close date",
name == "sale_price_dpl" ~ "Sales price",
name == "mortgage_amount_dpl" ~ "Principal",
name == "interest_rate_dpl" ~ "Interest rate",
name == "pct_chg" ~ "Change in neighborhood assessment",
name == "pmt" ~ "Monthly payment",
name == "months" ~ "Payments made",
name == "balance" ~ "Remaining balance",
name == "est_val" ~ "Estimated current home value",
name == "equity" ~ "Estimated equity"
))
prop_equity_table |>
kable(col.names = c("", "North Berkshire Rd", "Orangedale Ave"),
align = "lcc",
escape = F) |>
kableExtra::kable_styling(
bootstrap_options = c("hover", "condensed", "responsive", "striped"),
font_size = 14
) |>
kableExtra::row_spec(10, bold = TRUE)| North Berkshire Rd | Orangedale Ave | |
|---|---|---|
| Close date | 2017-08-24 | 2017-12-05 |
| Sales price | $178,700 | $126,000 |
| Principal | $142,960 | $100,800 |
| Interest rate | 4.375% | 3.750% |
| Change in neighborhood assessment | 31.3% | 38.0% |
| Monthly payment | $714 | $467 |
| Payments made | 64 | 60 |
| Remaining balance | $129,107 | $90,798 |
| Estimated current home value | $234,633 | $173,851 |
| Estimated equity | $105,526 | $83,053 |
Based on these estimates, the homeowner on North Berkshire Road has gained $105,526 in home equity through 2022, and the homeowner on Orangedale Ave has earned $83,053.
The steps below show the process for estimating home equity with public real estate sales data. This process also uses the two client homes selected above.
Step 1: Create list of relevant home sales
Load in real estate sales records and join with parcel data, which includes fields on house attributes. Remove all sales with a zero value (which do not reflect a market transaction) and those before 2017. Convert to spatial object and join with Charlottesville neighborhood boundaries.
# Load in real estate sales records from city
cv_sales <- read_csv("data/raw/Real_Estate_(Sales).csv") |>
# Join records with spatial parcel data
right_join(cv_parcels) |>
# Filter out all records that do not have a sales price
filter(SaleAmount > 0) |>
# Clean up date column
mutate(SaleDate = str_sub(SaleDate, 1, 10),
SaleDate = parse_date_time(SaleDate, "ymd")) |>
# Filter only sales in 2017 and after
filter(SaleDate >= "2017-01-01") |>
# Convert to spatial object using parcel geometry
st_as_sf() |>
# Join to neighborhoods
st_join(cv_nhoods)Step 2: Pull comps for client homes
Filter the sales records to make a list of comps for each of the two homes used in the prior section. Because of limited sales numbers over the last five years, we cannot filter to neighborhoods. Instead, these comps are based on sales of other homes that:
Using the code below, we are left with 144 comps for North Berkshire Road and 203 for Orangedale Avenue. Median sale values for each list are then summarized by year, followed by the cumulative percent change in those values from 2017 to 2022.
# N Berkshire Rd
# 2 bed, 1 bath, 975 sqft
cv_sales_berkshire <- cv_sales |>
st_drop_geometry() |>
filter(Bedrooms == 2 & FullBathrooms == 1 &
SqFt >= 875 & SqFt <= 1075) |>
mutate(SaleDate = year(SaleDate)) |>
summarise(median = median(SaleAmount), .by = SaleDate) |>
arrange(median) |>
mutate(chg = median - first(median),
pct_chg = chg / first(median)) |>
mutate(NAME = "The Meadows", .before = 1) |>
mutate(home = "North Berkshire Rd", .after = 1)
# Orangedale Ave
# 3 bed, 1 bath, 1200 sqft
cv_sales_orangedale <- cv_sales |>
st_drop_geometry() |>
filter(Bedrooms == 3 & FullBathrooms == 1 &
SqFt >= 1100 & SqFt <= 1300) |>
mutate(SaleDate = year(SaleDate)) |>
summarise(median = median(SaleAmount), .by = SaleDate) |>
arrange(median) |>
mutate(chg = median - first(median),
pct_chg = chg / first(median)) |>
mutate(NAME = "Fifeville", .before = 1) |>
mutate(home = "Orangedale Ave", .after = 1)
# Combine two property comps
cv_sales_comp <- bind_rows(cv_sales_berkshire, cv_sales_orangedale) |>
mutate(pct_chg = case_when(
SaleDate == 2017 ~ NA,
TRUE ~ pct_chg
))The plot below shows the annual median sales price calculated for each set of comps from 2017 to 2022, as well as the cumulative percent change. Prices for homes similar to the North Berkshire Road house have risen 57 percent, and 69 percent for those similar to the Orangedale Avenue home.
# Plot median and percent change in annual comps for each home
ggplot(cv_sales_comp,
aes(SaleDate,
median,
fill = home,
label = label_percent(accuracy = 1)(pct_chg))) +
geom_col() +
geom_text(vjust = 2,
color = "white") +
facet_wrap(~home) +
scale_fill_hda() +
scale_color_hda() +
scale_x_continuous(breaks = c(2017:2022)) +
scale_y_continuous(labels = label_dollar()) +
theme_hda() +
add_zero_line("y") +
theme(axis.text.x = element_text(angle = 90, vjust = 0.5)) +
labs(
title = "Value of comparable citywide sales to client homes",
subtitle = "Annual median sales price and cumulative percent change from 2017 to 2022",
caption = "**Notes:**<br>North Berkshire Rd comps: 2 bed, 1 bath, 875-975 sqft.<br>Orangedale Ave comps: 3 bed, 1 bath, 1100-1300 sqft."
)
Step 3: Find estimated equity
To determine the estimated equity for each of these homes, we use the same methods from the previous section. However, instead of applying the percent increase in neighborhood home values, here we use the average percent increase in sales prices for comparable homes across the whole city.
# Join with property data
prop_comp <- cv_sales_comp |>
filter(SaleDate == 2022) |>
left_join(prop_2017, by = "NAME") |>
select(1, 2, 4, 5, 6, 8, 10:13)
# Calculate equity
comp_equity <- prop_comp |>
mutate(pmt = mortgage_amount_dpl*((interest_rate_dpl/12)/(1-(1+(interest_rate_dpl/12))^(-360)))) |>
mutate(months = (interval(close_date_dpl, as_date("2022-12-31"))) %/% months(1)) |>
mutate(balance = (pmt/(interest_rate_dpl/12)) * (1 - (1/(1+(interest_rate_dpl/12))^(360-months)))) |>
mutate(est_val = sale_price_dpl * (1 + pct_chg)) |>
mutate(equity = est_val - balance)The table below shows the inputs and results from the calculations above.
comp_equity_table <- comp_equity |>
select(2, 6, 7, 9, 10, 5, 11:15) |>
mutate(
close_date_dpl = as.character(close_date_dpl),
interest_rate_dpl = percent(interest_rate_dpl, digits = 3),
pct_chg = percent(pct_chg, digits = 1),
across(c(3,4,7,9:11), ~ currency(.x, digits = 0)),
) |>
mutate(across(3:11, ~ as.character(.x))) |>
pivot_longer(cols = 2:11, names_to = "name", values_to = "values") |>
pivot_wider(names_from = home, values_from = 3) |>
mutate(name = case_when(
name == "close_date_dpl" ~ "Close date",
name == "sale_price_dpl" ~ "Sales price",
name == "mortgage_amount_dpl" ~ "Principal",
name == "interest_rate_dpl" ~ "Interest rate",
name == "pct_chg" ~ "Change in neighborhood assessment",
name == "pmt" ~ "Monthly payment",
name == "months" ~ "Payments made",
name == "balance" ~ "Remaining balance",
name == "est_val" ~ "Estimated current home value",
name == "equity" ~ "Estimated equity"
))
comp_equity_table |>
kable(col.names = c("", "North Berkshire Rd", "Orangedale Ave"),
align = "lcc",
escape = F) |>
kableExtra::kable_styling(
bootstrap_options = c("hover", "condensed", "responsive", "striped"),
font_size = 14
) |>
kableExtra::row_spec(10, bold = TRUE)| North Berkshire Rd | Orangedale Ave | |
|---|---|---|
| Close date | 2017-08-24 | 2017-12-05 |
| Sales price | $178,700 | $126,000 |
| Principal | $142,960 | $100,800 |
| Interest rate | 4.375% | 3.750% |
| Change in neighborhood assessment | 57.3% | 68.8% |
| Monthly payment | $714 | $467 |
| Payments made | 64 | 60 |
| Remaining balance | $129,107 | $90,798 |
| Estimated current home value | $281,034 | $212,729 |
| Estimated equity | $151,926 | $121,931 |
Based on these estimates, the homeowner on North Berkshire Road has gained $151,926 in home equity through 2022, and the homeowner on Orangedale Ave has earned $121,931.
These two approaches both show that the clients in these homes have likely earned a significant amount of home equity since their purchases in 2017. However, differences in source data and methodology produce estimates that do vary by large amounts, even if all values are major increases.
prop_equity_sum <- prop_equity |>
select(6, "home" = 2, 7, 11, 12) |>
mutate(method = "Assessments") |>
mutate(home = case_when(
NAME == "The Meadows" ~ "North Berkshire Rd",
TRUE ~ "Orangedale Ave"
))
comp_equity_sum <- comp_equity |>
select(1, 2,5, 14, 15) |>
mutate(method = "Home sales")
equity_sum <- bind_rows(prop_equity_sum, comp_equity_sum) |>
pivot_longer(cols = 3:5, names_to = "type", values_to = "value")The plot below shows the differences in the estimated percent increase of home value produced by each method (from 2017 to 2022). Using actual market transactions (home sales) leads to much higher estimates—almost double the results generated by the assessment data method.
equity_sum |>
filter(type == "pct_chg") |>
ggplot(aes(method, value, fill = method,
label = label_percent(accuracy = 0.1)(value))) +
geom_col() +
geom_text(vjust = 2,
color = "white") +
facet_wrap(~home) +
scale_fill_hda() +
theme_hda() +
add_zero_line("y") +
theme(axis.text.y = element_blank()) +
labs(
title = "Method comparison for estimated percent increase in home value",
subtitle = "Estimated percent change in home value from 2017 to 2022 by methodology"
)
As a result, the estimated current home values also vary by $40,000 to $50,000 depending on methodology.
equity_sum |>
filter(type == "est_val") |>
ggplot(aes(method, value, fill = method,
label = label_dollar()(value))) +
geom_col() +
geom_text(vjust = 2,
color = "white") +
facet_wrap(~home) +
scale_fill_hda() +
theme_hda() +
add_zero_line("y") +
theme(axis.text.y = element_blank()) +
labs(
title = "Method comparison for estimated current home value",
subtitle = "Estimated home value in 2022 by methodology"
)
The estimated home values above are used to then calculate the expected amount of home equity each homeowner has earned since their purchase. For the North Berkshire Road home, the estimated equity ranges from about $105,000 to $151,000. The latter is several thousand dollars more than the buyer’s total principal.
Equity estimates for the Orangedale Avenue home range from $83,000 to $122,000. The higher estimate is just about $4,000 less than the buyer’s original purchase price. So, while estimates do vary, both buyers can reasonably expect significant gains in home equity relative to their original purchase price.
equity_sum |>
filter(type == "equity") |>
ggplot(aes(method, value, fill = method,
label = label_dollar()(value))) +
geom_col() +
geom_text(vjust = 2,
color = "white") +
facet_wrap(~home) +
scale_fill_hda() +
theme_hda() +
add_zero_line("y") +
theme(axis.text.y = element_blank()) +
labs(
title = "Method comparison for estimated home equity",
subtitle = "Estimated home equity earned from 2017 to 2022 by methodology"
)
While many factors are at play, the major distinction between these methods is the ability of market transactions to show much stronger home value increases—and therefore home equity—compared to tax assessments. Sales data are more accurately showing the accelerating market in Charlottesville over the last five years, while the assessments lag behind.
PHA has been collecting enough client data over the last five years to generate a number of useful findings about its homebuyer programs. Despite these achievements, expanding data integrity efforts and a host of other next steps could help PHA develop a fuller spectrum of analysis. Notable takeaways from this preliminary analysis are below.
Program data status:
Program findings:
Client characteristics:
Home equity gains:
